A soldering station built for through-hole work is defined by three things: how much heat it can push into a large thermal mass, how fast it recovers after you touch a cold pad, and whether it takes a chisel tip that covers a whole pad in one pass. A station that hits 800 degrees in ten seconds but crashes to 400 the moment it touches a ground plane will leave you with dull, grainy cold joints. A station that holds its set point under load is the one you want on the bench.
We spent weeks putting nine temperature-controlled stations through through-hole jobs, from 30 AWG wire off the back of a pad to 10 AWG ring terminals and bulk capacitor leads. The picks below cover the full range, from a compact station you can pack in a toolbox to a bench unit with temperature lock and password protection. If you want the wider picture on general electronics work, our guide to the best soldering stations for electronics covers surface-mount priorities too.
Everything here is a soldering station rather than a bare pencil iron, and that distinction matters more for through-hole than for any other job. A station reads a thermocouple, compares it to your dialed-in number, and modulates heater power so the tip temperature at the joint matches the set point. That closed loop is what separates a good joint from a cold one, and it is the reason the list below is nine stations and not nine irons.
Table of Contents
Top 3 Soldering Stations for Through-Hole Work in 2026
These three cover the range most people actually need. The Weller is the one we would put on any bench, the YIHUA is the value pick that ships with everything you need on day one, and the X-Tronic is the strongest station for large terminals and heavy wire.
Weller WE1010NA
- 70W iron
- ±4F temperature stability
- Temperature lock
- Standby and auto setback
Best Soldering Stations for Through Hole Work (October 2026)
Every station below is temperature-controlled with a single channel. Read the power and range columns together: what matters for through-hole is how much energy the iron puts into the pad after contact, not the headline number on the box.
| Product | Specifications | Action |
|---|---|---|
| Weller WE1010NA |
|
Check Latest Price |
| YIHUA 926 III |
|
Check Latest Price |
 YIHUA 939D+ |
|
Check Latest Price |
 TOAUTO DS90 |
|
Check Latest Price |
 WEP 927-IV |
|
Check Latest Price |
| X-Tronic 3020-XTS |
|
Check Latest Price |
 X-Tronic 3060-PRO |
|
Check Latest Price |
 Crtsweker 938 |
|
Check Latest Price |
 Aoyue 469 |
|
Check Latest Price |
1. Weller WE1010NA – Best Overall for Through-Hole Work
Weller 70 Watt Digital Soldering Station | WE1010NA
70W iron
LCD readout
±4F stability
1 year warranty
Pros
- 70W iron is 40% more powerful than the two models it replaces
- ±4F temperature stability with temperature lock
- Heat-resistant silicon cable
- Standby mode and auto setback
- Password protection for station settings
Cons
- Bulky 5.5 lb and 12.5 x 6 x 9 in footprint
- Single channel with no user-programmable preset memories
The WE1010NA is the station we kept reaching for once a joint got big. That 70W iron is 40% more powerful than the two models Weller replaced, and you feel the difference the moment you solder a wire into a screw terminal or fill the barrel of a large electrolytic cap. Reviewers consistently point to the power and the stated ±4F stability as the reason joints come out repeatable on this unit, and at 4.7 across 4670 reviews it holds the strongest rating in this roundup.
Temperature lock is the feature that matters most for repeat through-hole assembly. Once you set a number, the station resists stray adjustments, so a dial bumped between joints does not quietly send you to a different temperature. Standby mode and auto setback handle the other half of the problem by cooling the iron when you stop, which is the single best defence against tip oxidation.
What you get in the box is tighter than most kits at this level: the station, a WEP70 iron, a WEP70 tip retainer, a PH70 safety rest with sponge, and an ETA 0.062 inch screwdriver. There is no solder roll, no helping hands, no solder sucker. That is a deliberate choice, and it means you are buying a tool rather than a bundle.
The trade-off is physical. At 5.5 pounds and 12.5 by 6 by 9 inches, this is the largest station here, and it needs a real spot on the bench. It is also single channel with no user-programmable presets, so if you regularly alternate between 650F leaded work and 750F lead-free work, you are re-dialing each time.
When the Weller earns its bench space
If your through-hole work involves chassis grounds, multi-pin headers, or wire-to-terminal joints rather than 0.8 mm signal leads, this is the pick. The 70W element has enough headroom that the tip does not collapse into a cold joint while you wait for the solder to flow through the barrel.
The silicon cable is a quiet quality-of-life upgrade over cheaper rubber cords. It stays flexible over a long session and does not stiffen in a coil near the base, so it does not tug the iron sideways while you work on a tight board.
When to pick something else
If your bench is small, the footprint is the first thing you will notice. If most of your joints are small IC pins rather than power terminals, a lighter station with a wider accessory kit will serve you better for the money you are not spending here.
Outside North America, check the input rating before anything else. This is a 120V unit, and the manual accents matter for anyone running on a 230V supply.

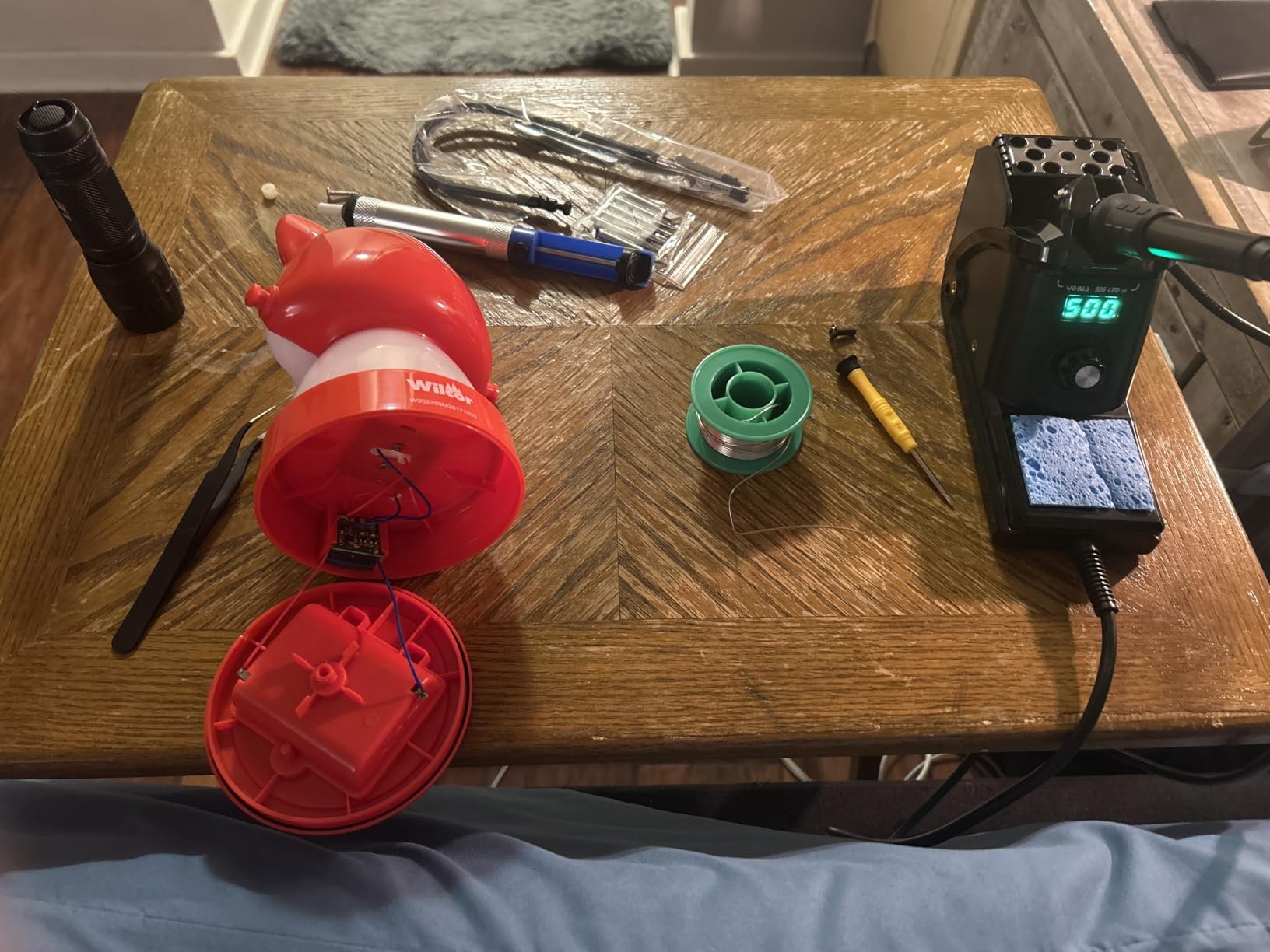

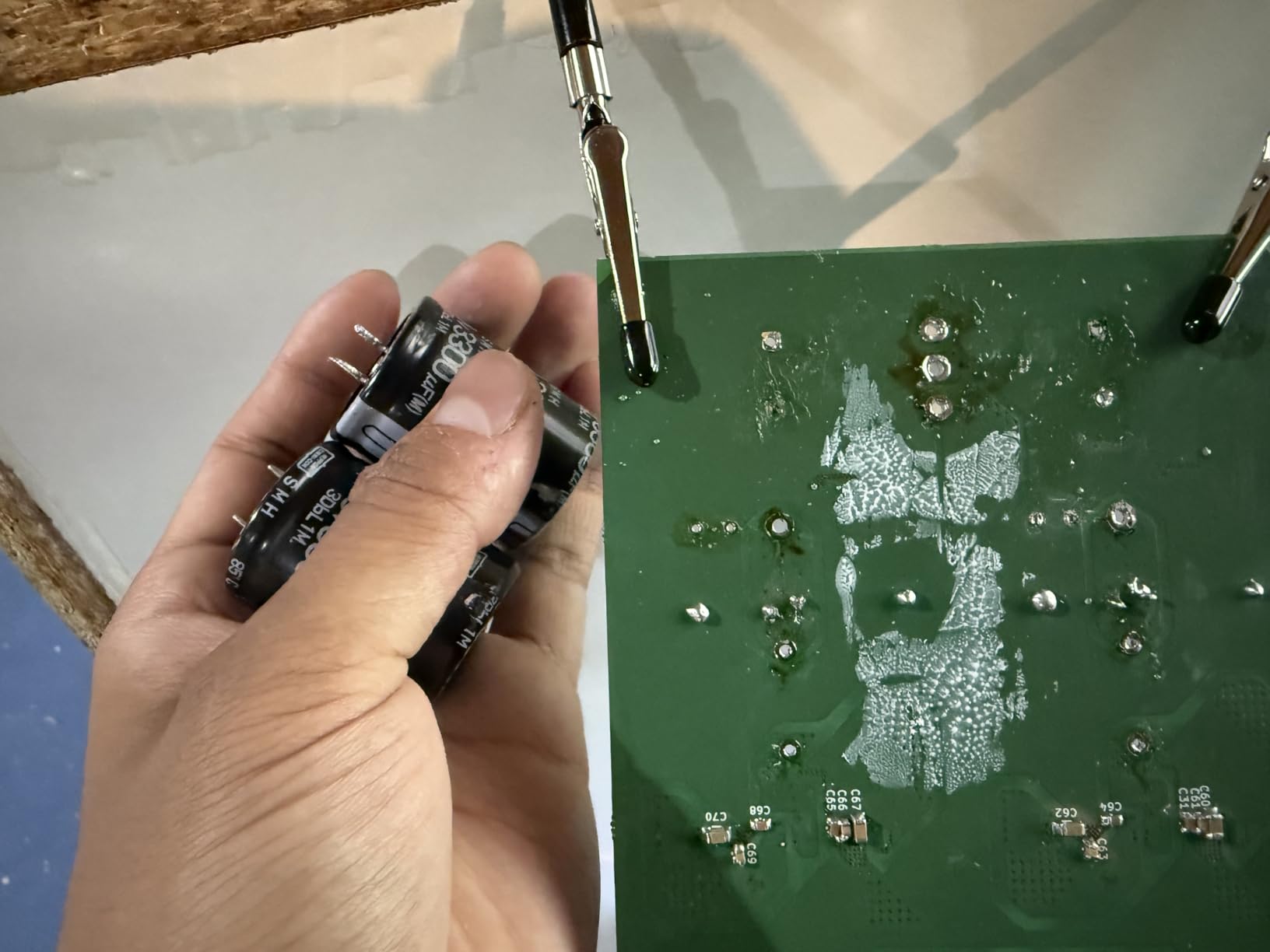

2. YIHUA 926 III – Best Value Starter Station
YIHUA 926 III 60W LED Display Soldering Iron Station Kit w 2 Helping Hands, 6 Extra Iron Tips, Roll of Lead-Free Solder, Solder Sucker, S/S Tweezers, °C/ºF Conversion, Auto Sleep & Calibration Support
60W element
194F to 896F
±3.6F stability
LED display
Pros
- Heats in roughly 10 seconds and holds temperature steadily
- Ships with 6 extra tips and a solder roll
- Two helping hands with removable alligator clips
- PID control with calibration and a selectable sleep timer
- Compact 7.3 x 4.5 x 2.8 in body
Cons
- Tip-end heat can run cooler than the display suggests
- 60W is light for the largest ground-plane joints
- Short station power cord
For a first through-hole build, this kit removes almost every reason to delay. You get the station, six assorted tips, a 35 g roll of lead-free solder, a desoldering pump, ESD-safe tweezers, a sponge, a solder wire bracket, a spanner, and two helping hands with removable alligator ends. Owners single out the helping hands as genuinely useful for holding a board while both hands stay on the iron and the solder.
Reviewers report heat-up in roughly ten seconds and a temperature that holds steady once it arrives. The sleep timer is user-selectable at 0, 5, 10, or 30 minutes, and the station supports temperature calibration, which is unusual at this level and lets you correct the readout against a known reference.
The recurring criticism is tip-end heat consistency. Because heat concentrates near the heating element, some areas of the tip run cooler than the display suggests, and on a small precision joint the difference is noticeable. For through-hole work with a chisel tip, that effect matters far less than it would on fine SMD work.
Two smaller notes: the station power cord is short for a standard-height bench, and the screw-on tip change means you wait for the tip to cool before handling it. The plastic housing also feels inexpensive in the hand, though it is UL listed and covered by 12 months of US manufacturer technical support.
Who this kit suits
Someone building their first handful of through-hole boards, or anyone who wants helping hands, tips, solder, and a solder sucker in one purchase rather than four. The auto sleep function alone moves it ahead of a pencil iron for anyone who walks away from the bench mid-job.
It is also the least intimidating station here. One knob handles temperature and the menu, and there is no calibration offset to hunt for before your first joint.
Who should skip it
If your work involves large thermal mass, 60W is a real ceiling. A 0.8 mm lead through a plated pad is comfortable; a big electrolytic lead into a ground plane is where the tip starts lagging behind the set point.
This is also a 110V-only design with a US-standard plug, so buyers outside North America should look elsewhere or plan around a converter.
3. YIHUA 939D+ – Best Transformer-Powered Station for Power Joints
YIHUA 939D+ Digital Soldering Station, 75W Equivalent with Precision Heat Control (392°F to 896°F) and Built-in Transformer. ESD Safe, Lead Free with °C/°F display (Black)
120W system
392F to 896F
±5C stability
built-in transformer
Pros
- Built-in transformer drives real power into large joints
- Control loop compensates every 20 milliseconds
- Factory tips have thicker walls and better plating
- Real brass tip cleaner with rosin flux
- Compact 5.4 x 4.4 x 3.6 in body
Cons
- Light iron stand can tip over if knocked
- Internal fuse is not externally accessible
This is the station that convinced us that wattage on the box means more when the hardware underneath is built for it. The 939D+ uses a built-in transformer to output contact-safe voltage without giving up power, and reviewers describe it as the value pick in the YIHUA line for anyone soldering regularly. The manufacturer states it is used by industrial factories for more than 10 hours a day.
Temperature control compensates in 20-millisecond intervals, which is why the set point holds while you work a big joint. A detailed long-form review specifically praises the thick tip walls and plating for heat and recovery, and a real brass tip cleaner with rosin flux is a nicer detail than the brass-coated steel most kits include.
The mechanical side is where the complaints live. The iron stand is light and can tip if you knock it, and the base lacks grippy rubber feet so it can slide on a hard desk. The internal fuse is also buried, so replacing it means opening the case and working with solder.
Those are annoying rather than disqualifying, and they are the trade for a small 5.4 by 4.4 by 3.6 inch footprint that genuinely suits a hobby desk. The detachable 907F iron is a plus over stations where a failed handpiece means replacing the whole unit.
When the transformer matters
Heavier joint work, wiring harnesses, and connector assemblies are where this station earns its slot. The combination of 120W of system power, a 20-millisecond control interval, and well-built tips means the iron keeps feeding heat into the joint while the solder flows.
If you have a habit of tinning the tip and then immediately loading a big joint, the recovery here is noticeably less dramatic than on a 60W compact unit.
Where it falls short
Two things to know before ordering. This is a 110V US-only unit, and the iron cord is shorter than ideal for a tall bench setup where the base sits below the work surface.
Also worth noting: the listed temperature stability is ±5C, which is wider than the ±2C figures on the X-Tronic units. That is still perfectly serviceable for through-hole, but it is the number to watch if you work on mixed-temperature jobs.

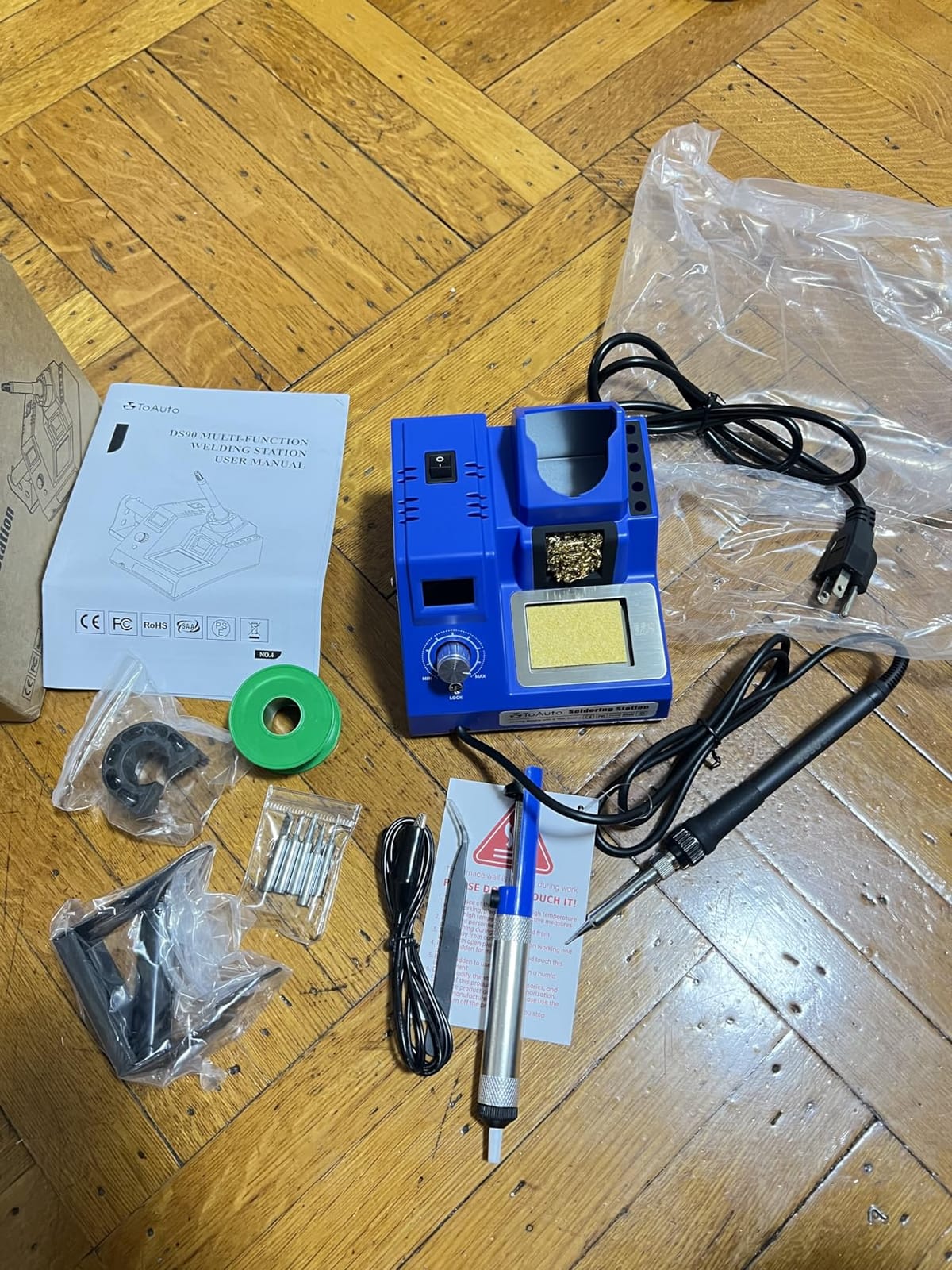

4. TOAUTO DS90 – Best for Big Connectors and Battery Leads

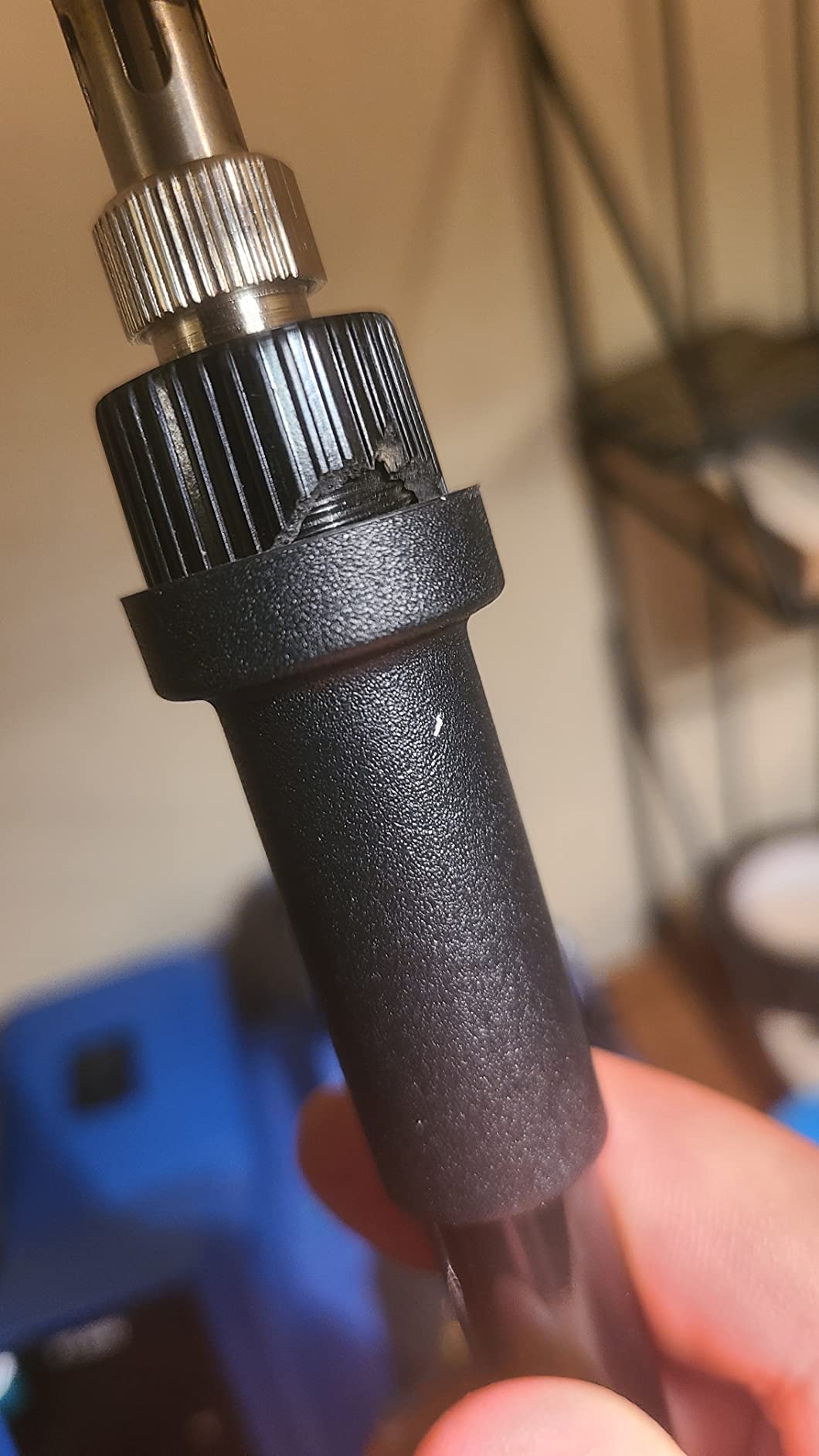

TOAUTO DS90 Soldering Station-°F & °C Dual Digital Display Soldering Iron Station Kit,90W Soldering Iron,302℉- 842℉ Temperature, Anti-Static & Grounding Wire, Auto Standby & Sleep,5 Solder Tips, Blue
90W ceramic core
302F to 842F
±2C stability
dual display
Pros
- Reaches 590F in about five seconds on a ceramic core
- Temperature lock mode holds a constant temperature
- 13-piece kit with 5 extra tips and solder
- Auto standby at 10 minutes and sleep at 20 minutes
- Handles large connectors such as XT90 and EC5
Cons
- Solder reel side holder is barely adequate
- Readout tracks the heater so it reads low right after power-on
The DS90 stands out for speed and for a specific kind of job. The 90W ceramic heating core reaches 590F in about five seconds, and the dual-row display shows °F and °C at the same time so you never have to guess which mode you are in. Reviewers who work on battery packs and high-current connectors report that XT90 and EC5 style joints come out cleanly.
Temperature lock is the mode that matters here. When you set it, the station holds a constant temperature through the whole joint, which is exactly what you want on a heavy lead that takes a while to heat. The 13-piece kit also brings a solder bracket, 30 g of lead-free solder, a solder sucker, ESD tweezers, a brass tip cleaner, and a sponge.
There is a grounding wire and a remove-static sheet, which is thoughtful for desoldering work on sensitive boards. The station is also ESD, CE, FCC, and RoHS certified, and it carries a 1-year warranty with lifetime technical support.
The 302F to 842F range is the narrowest here, so plan around it if you work with heat-sensitive parts that need a very low set point. One reviewer also notes the readout measures the heater rather than the tip, so it reads briefly low right after power-on.
When to choose the DS90
Power connectors, battery leads, and anything where the joint is a large copper lug rather than a small pad. The five-second heat-up also matters if you move between benches or do short jobs all day.
The auto standby at 10 minutes and sleep at 20 minutes are the features people notice most after switching from a pencil iron, because the tip stops cooking while you are away from the desk.
Where it falls short
The cord is short and thick with less flexibility than a premium iron cable, and the solder reel holder on the side is barely adequate. The included brass wool is brass-coated steel rather than real brass, which matters more for tip longevity than it sounds.
Some replacement tips also do not fit the base storage holes without modification, and the lightweight plastic parts feel less durable than a heavier metal-bodied station.
5. WEP 927-IV – Best for Preset Channels on a Small Bench
WEP 927-IV Soldering Station Kit High-Power 110W with 3 Preset Channels, Sleep Mode, LED Magnifier, 5 Extra Iron Tips, Tip Cleaner, 2 Helping Hands, Tip Storage Slots, Lead-free Solder Wire, Tweezers
110W element
194F to 896F
3 preset channels
LED magnifier
Pros
- Three preset temperature channels cut re-dialing between jobs
- Dual display shows set and actual temperature at once
- Iron
- holder
- cleaner
- dispenser
- magnifier and tip storage in one base
- Uses widely available WEP 1400 tips
- Sleep timer settable from 0 to 99 minutes
Cons
- Rated 110-127V only
- Needs WEP 1400 tips rather than a generic platform
Preset channels are the feature that separates the 927-IV from most stations in this group, and for through-hole assembly work it is more useful than raw wattage. Three channels hold three temperature configurations, so a leaded build at one setting and a lead-free repair at another stop being two separate dial-ins. The double numerical display shows set and actual temperature at the same time, which makes the difference obvious.
The 110W heating element covers 194F to 896F and heats fast. What reviewers like most is that the iron, holder, tip cleaner, solder dispenser, helping hands, LED magnifier, and tip storage all live in a single 3.94 by 5.91 by 1.89 inch base, which is genuinely useful when bench space is the constraint.
For through-hole specifically, the LED magnifier helps with the inspection pass after a row of joints, when you are looking for a concave fillet rather than a dome of solder sitting on top of the pad. The helping hands hold a board from a couple of angles, and the tip storage slots keep your chisel tips within reach.
One of our own preset recommendations for this unit: a low setting for small signal parts, a middle channel for general leaded through-hole, and a high channel for lead-free joints. That is roughly the three-channel logic the hardware is designed for.
Who the preset channels suit
Anyone who alternates between solder types or between delicate parts and heat-hungry joints in a single session. A builder moving from a 650F leaded joint to a 750F lead-free joint on the same board gets there in one press instead of re-dialing.
The all-in-one chassis also makes this a strong first station for a cramped desk, because the accessories do not end up scattered across the bench.
What to check before ordering
Two practical points. This station is rated 110-127V for USA specifications, so it will not run directly on a 220V socket. And it uses WEP 1400 soldering iron tips, so budget for a proprietary tip platform rather than assuming the generic tips you already own will fit.
It is also made by the same manufacturer as the YIHUA units, so the two brands share a support structure even though the tip platforms differ.
6. X-Tronic 3020-XTS – Best for Large Terminals and Heavy Wire
The Original X-Tronic 3020-XTS • 75W Soldering Iron Station Kit • 2 Helping Hands • Silicone Tool Mat • 5 Extra Tips • 50g Roll of Solder • Brass Sponge • Cleaning Flux • C/F Conversion • Auto Sleep!
75W station
392F to 896F
±2C stability
3 year warranty
Pros
- Reaches 480C from 200C in under 30 seconds
- Subdued 40 inch iron cord with virtually no memory
- Even tip heating praised by experienced users
- US brand with 3 year warranty and lifetime support
- Heating element is replaceable
Cons
- Temperature knob is very sensitive on light touches
- Iron is wired into the base with no jack
- Handle can get hot at 700F
This is the station experienced users defend hardest, and the reviews read differently in tone from the rest of the list. A 20-year professional who had insisted on Weller for years switched to this unit and reports ample headroom for large terminals and 12 gauge wire, plus the even tip heating they had struggled to get elsewhere. The only caveat they raise is a hot handle at 700F.
Heat-up from 200C to 480C takes under 30 seconds, and the ±2C temperature stability is among the tightest figures here. The 40-inch iron cord is described as pliable with virtually no memory and no coiling, which matters when you are working around a fixture or inside an enclosure.
Inside the 75W rating, 60 watts goes to the iron and 15 watts to a mini motherboard inside the handle. That split is part of why even heating is reported, and it is also why the element is replaceable rather than the whole iron being consumable. One owner reports eight years of daily use before the element failed.
Support is a genuine differentiator for a US-based brand from Lincoln, Nebraska. Lifetime technical support, a 3-year warranty, and spare part availability for three years are not things the budget units here match.
When the 3020-XTS is the right tool
Harness work, ring terminals, spade lugs, and any joint where the copper is thick enough that you need the iron to keep pushing heat after first contact. The even tip heating means the middle of a wide chisel does not lag the edges.
It is also the pick for anyone who wants a station they can keep for a decade rather than replace, because the element is consumable and the brand backs parts for years.
Where it falls short
The temperature knob is very sensitive, so a light touch changes the set point by several degrees. If you prefer firm detents, this is the one feature to know about before you start dialing in lead-free temperatures.
Because the iron is wired directly into the base with no jack, a failed handpiece means replacing the whole station. The base is also light enough to slide across the bench when you lift the iron, and the heating element has a rated life of about a year under heavy use.

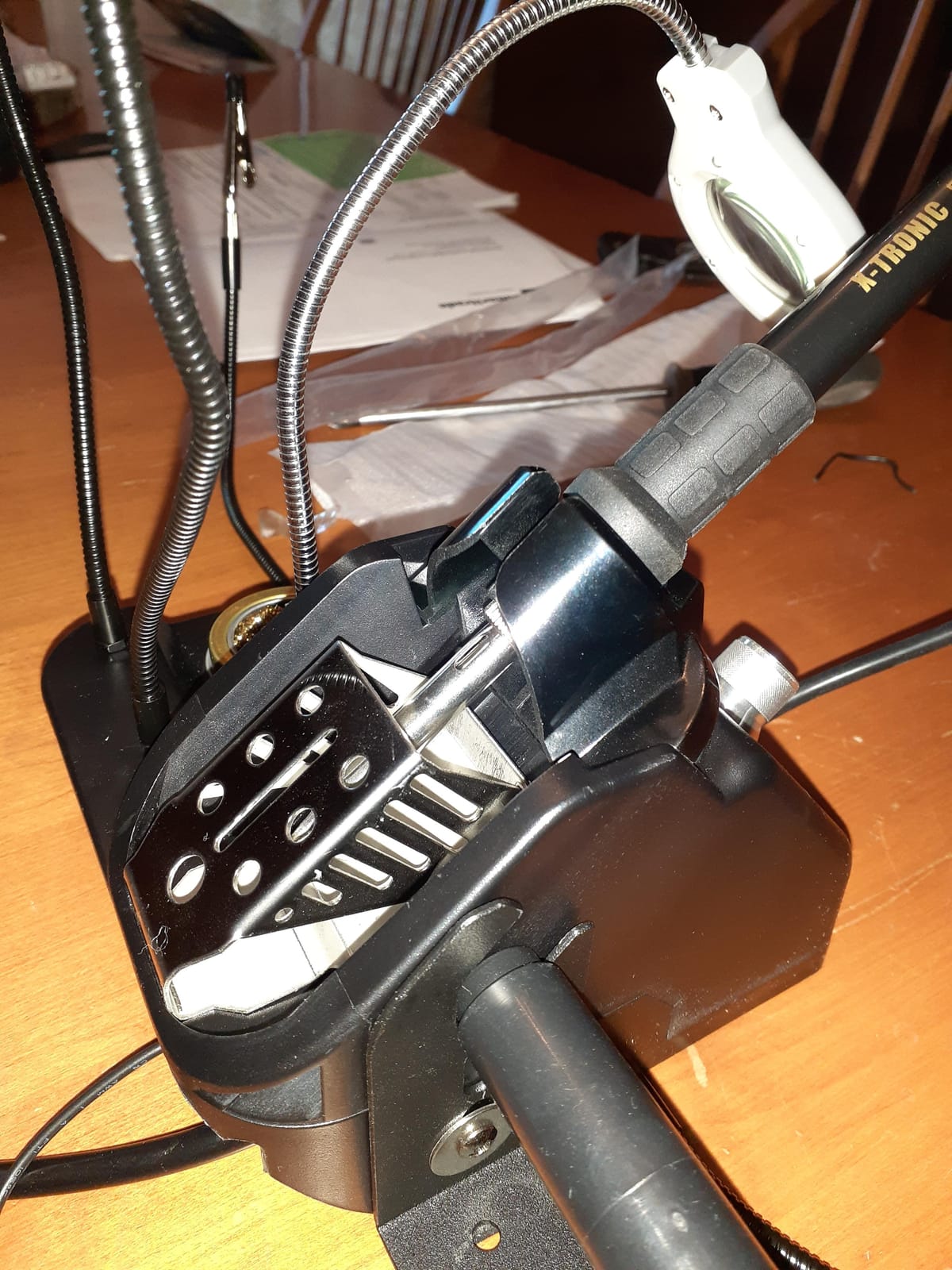

7. X-Tronic 3060-PRO – Best for Repeat Bench Work with Memory Presets

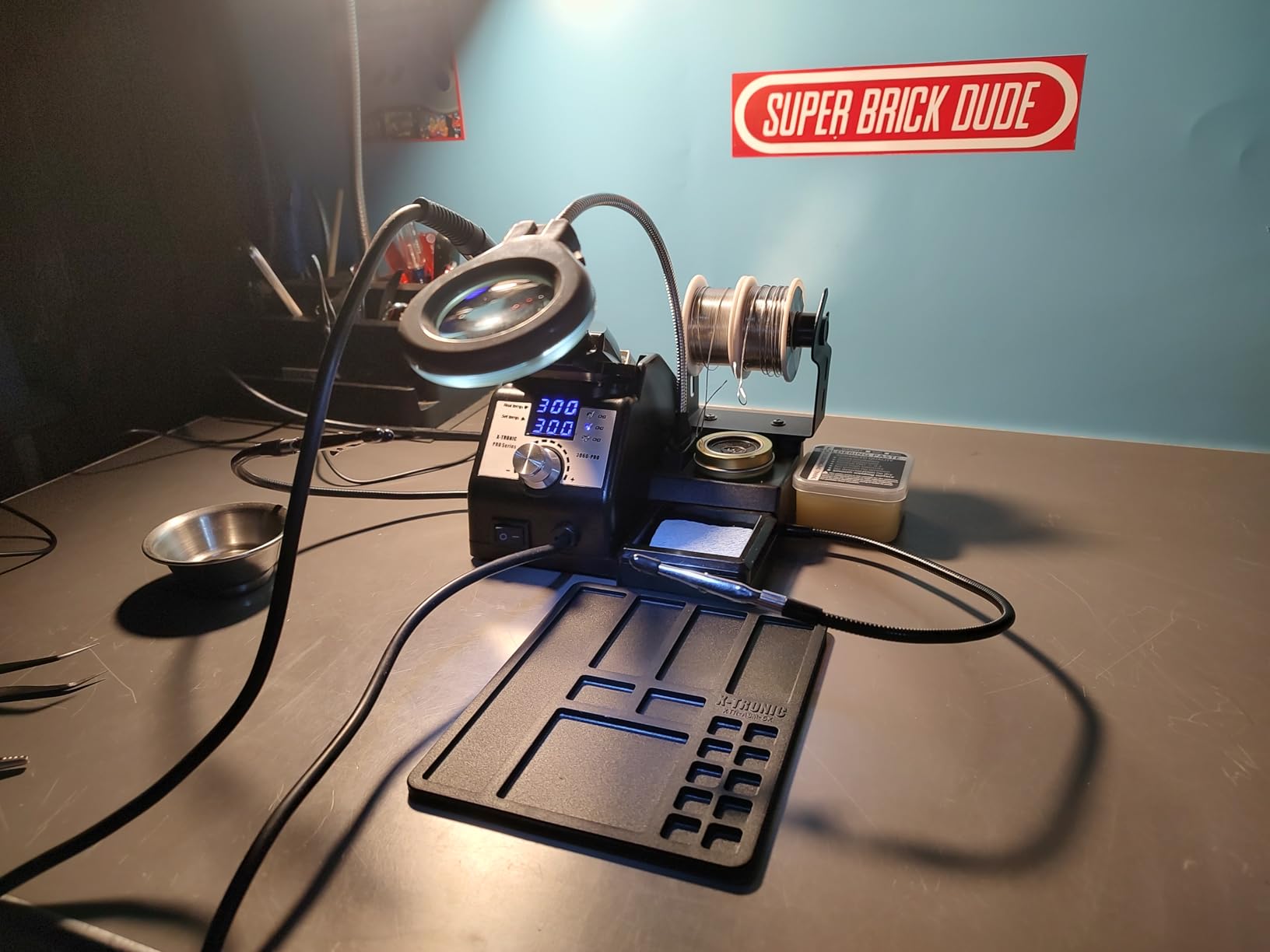

X-Tronic 3060-PRO • 75W Soldering Iron Station Kit • 5 Extra Tips • Mini Mag Lamp • 4 Helping Hands • Solder Sucker • Tweezers • 50g Solder • Brass Sponge w/Flux • Sleep Func, °C/°F, 3 Temp Presets!
60W iron
194F to 896F
±3.6F static
3 presets
Pros
- Three preset memories plus digital temperature calibration
- Dual panels show set and real temperature
- 57 inch silicone iron cord with no memory
- Four detachable helping hands and a mini magnifier lamp
- Anti-static grounding wire for PCB work
Cons
- 110V/60Hz only with no 220V version offered
- Accessory load makes the kit bulkier than a bare station
The 3060-PRO is the step up from X-Tronic’s 3020, and the step is mostly in repeat-work features. Three preset memory functions plus digital temperature calibration mean a fixed production job can be dialled in once and reproduced, which is the through-hole use case that most rewards station-level control over a bare iron.
Station power is 75W, with 60W in the iron and 15W in a mini motherboard in the handle. The iron covers 194F to 896F, and static temperature stability is listed at ±3.6F, or 2.0C. The 57-inch silicone cord is among the longest here and is repeatedly described as having virtually no memory.
The accessory set is the richest in this group: a top-mount iron holder, side-mount solder roll holder, brass sponge with cleaning flux, wet sponge, five extra tips, an anti-static grounding wire, a mini magnifying lamp, four detachable helping hands, a solder sucker, 50 g of solder, and pinpoint tweezers. The grounding wire is called out as a practical addition for board-level work.
Reviewers also note the sleep timer is adjustable at 0, 5, 10, and 30 minutes, and that the whole feature set is advanced without being hard to program, which matters if you are new to temperature-controlled stations.
Who this suits
Someone doing the same through-hole job repeatedly, whether that is building identical boards or a repair bench where the same component type comes off the board every week. The three memories remove the single biggest source of joint-to-joint inconsistency, which is operator dialing error.
Four helping hands and a magnifier lamp also make it a good kit for mixed work where you are inspecting small joints as often as you are building them.
What to know first
This one is 110V/60Hz only, and the manufacturer states that no 220V version exists. That is worth knowing early rather than after delivery, and it is the single most common complaint in the reviews.
The full accessory load also makes the kit bulkier than a bare station, and the 60W iron is less generous on very large joints than the transformer-powered YIHUA above.

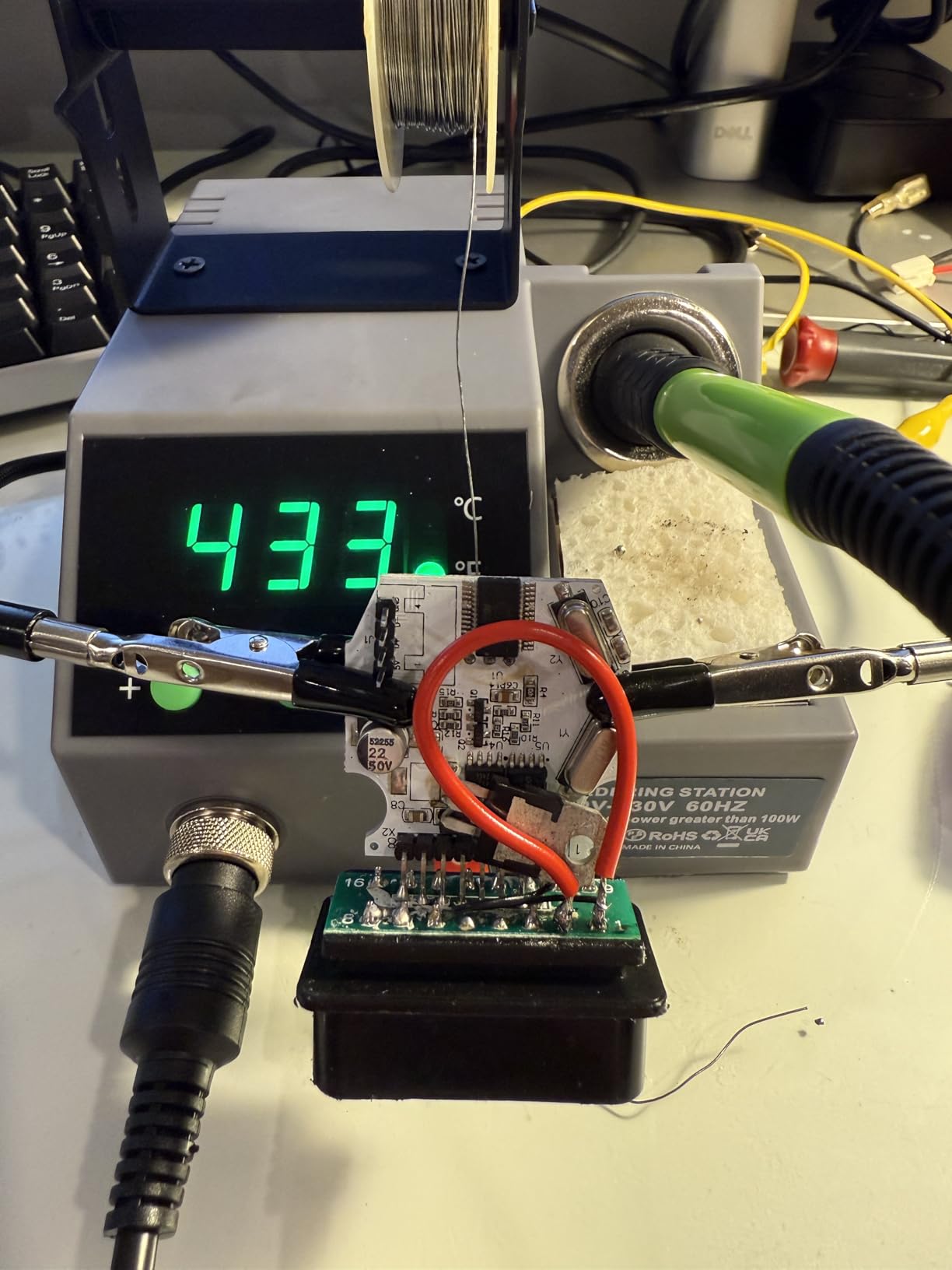

8. Crtsweker 938 – Best Budget Pick for First-Time Builders

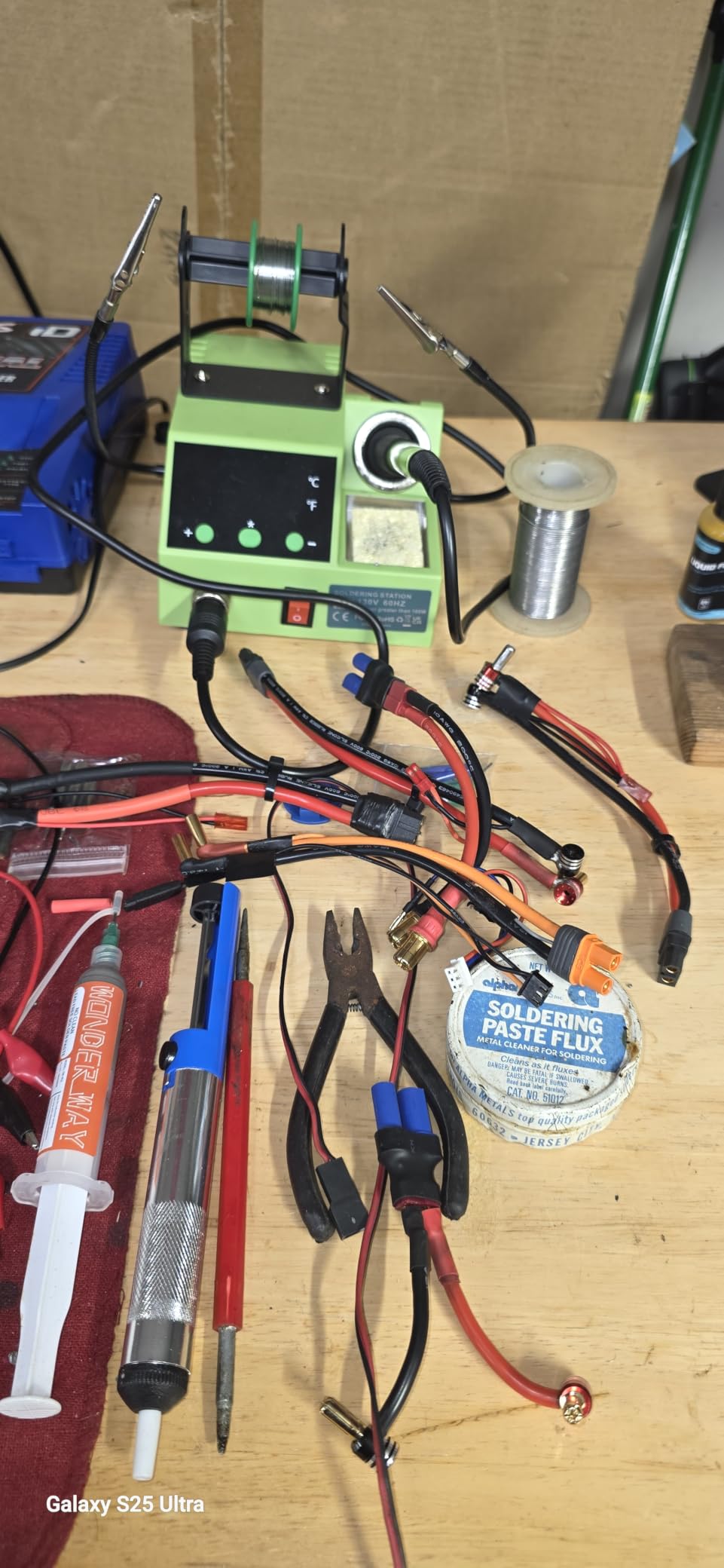

Soldering Station, 100W Digital Display Soldering Iron Station Kit with 2 Helping Hands, 356°F – 896°F, Auto Sleep, °C/°F Conversion, Solder Wire, Tips, Stand, Pump, Tweezers, Tip Cleaner, Green
100W element
356F to 896F
600s sleep timer
calibration
Pros
- 100W element across a 180C to 480C range
- Vented steel pipe handle cools fast between jobs
- Silicone-sheathed ergonomic grip
- Compact body and a 13-piece accessory kit
- Physical on and off switch plus auto hibernate
Cons
- Sleep timer caps at 600 seconds
- Single dial with no preset temperature memories
The Crtsweker competes on power per dollar, and the 100W rating across a 180C to 480C range is the headline reviewers react to. For through-hole that is a genuinely useful combination: 100W is enough headroom to fill a barrel on a mid-size component, and a compact body means it fits where a 5.5-pound bench station would not.
Temperature calibration is supported, and the readout switches between °C and °F easily. The vented steel pipe handle with four vents is a nice practical touch because it cools down between jobs, and the silicone sheathing stays comfortable on longer sessions.
The kit covers the essentials: station, helping hands, solder wire dispenser, cleaning sponge, iron tip cleaner, five tips, elbow tweezers, a solder sucker, solder wire, a screwdriver, and a mini wrench. At 0.86 kg it is easy to move around a bench or carry to a repair call.
Auto hibernate rests the iron at low temperature when it is not being used, and the timer can be set from 0 to 600 seconds. There is also a physical on and off switch, which is unusual in this class and useful for a shared bench.
When this is the smart buy
For a first station, a student bench, or anyone who wants a compact 100W unit with a full accessory kit and no frills. The included helping hands alone usually cost more than the difference between this and a bare station.
If you are doing occasional work rather than daily soldering, the auto hibernate and physical switch take most of the tip-care risk out of the equation.
Where it falls short
The sleep timer maximum of 600 seconds is short compared with the 10 to 30 minute windows on the YIHUA and X-Tronic units, so a longer coffee break means more tip oxidation. There are also no preset temperature memories, so each new job means re-dialing.
The rating distribution is weaker than the rest of this list, with a 5% one-star share, and control is a single dial with no numeric memory of where you were.

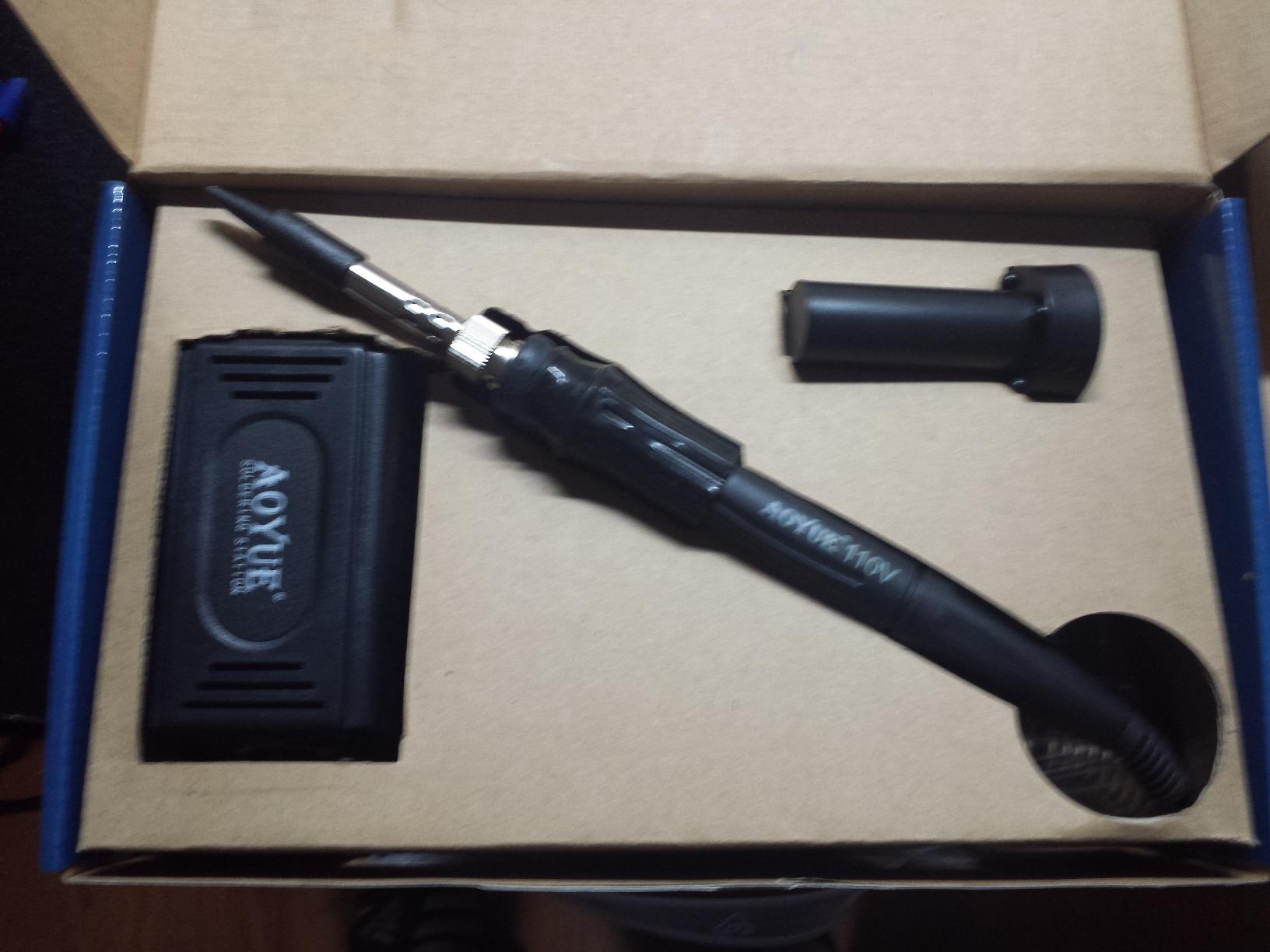

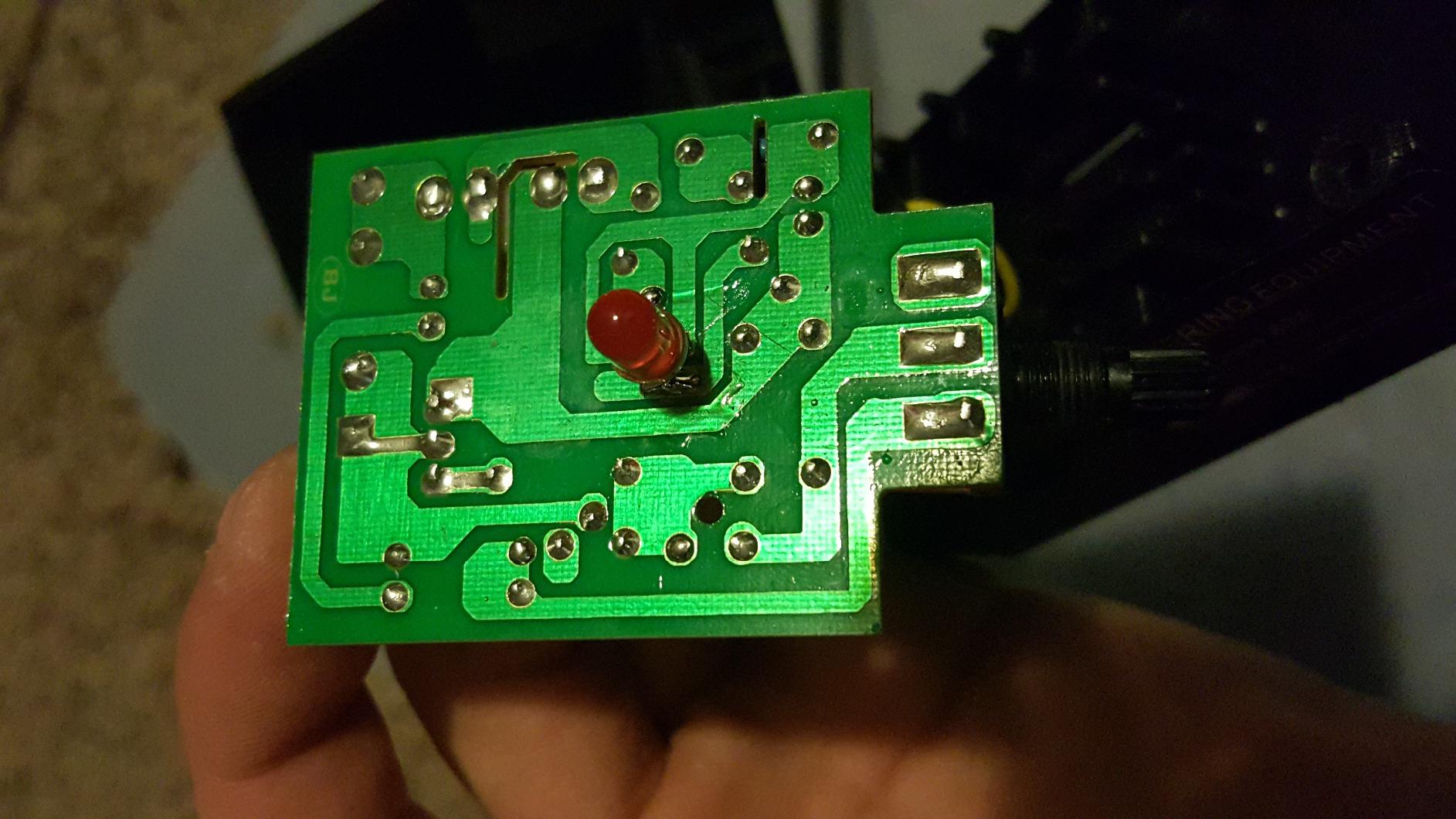

9. Aoyue 469 – Best Compact Station for Offsite Work
Aoyue 469-60 Watt Soldering Station
60W iron
200C to 480C
50 tip options
3.35 in body
Pros
- Body measures 3.35 x 2.01 x 2.32 in for easy packing
- 50 available soldering tips fit the station
- Fast acting PTC ceramic heater
- Built-in iron and sponge holder keeps the bench tidy
Cons
- Analog dial with no digital set-point readout
- No sleep
- standby or auto-off timer
The Aoyue 469 is the smallest station here, and portability is the whole pitch. At 3.35 by 2.01 by 2.32 inches it packs into a toolbox without competing with the tools around it, and the built-in iron and sponge holder keep a temporary bench tidy. It is the pick for field repair, hobby desks with no room, and anyone who only solders occasionally.
System power is 70W with a 60W iron depending on the handpiece, and the fast-acting PTC ceramic heater with minimal circuitry is a design that prioritises reliability over features. Fifty available soldering tips fit this station, so keeping supplied over the years is straightforward.
The temperature range is 200C to 480C, which covers both leaded and lead-free through-hole work with room to spare. The station ships with the unit, a power cord, a solder spool stand, a cleaning tray with sponge, a spring-type iron holder, and a manual.
What it does not have is anything digital. Control is a simple dial with no set-point readout, and there is no sleep, standby, or auto-off timer, so tip management is entirely on you.
When the Aoyue makes sense
Travelling technicians, field service kits, and anyone who solders at a friend’s kitchen table once a month. The minimal circuitry and tiny footprint are the reasons this design has stayed around, and 50 compatible tips mean consumables are never a problem.
It is also a reasonable second station for a bench that mainly does small through-hole joints rather than large power joints.
Where it falls short
There is no digital readout, so you cannot verify what the iron is actually doing, and no timer means the tip sits at temperature indefinitely when you walk away. For daily work, that is a real cost in tip life and in your attention.
At 60W it is also the least capable of the group on large thermal mass joints, and it carries the lowest average rating here at 4.3 with a larger share of three-star reviews reflecting the simpler feature set.
How to Solder a Through-Hole Joint Without Cold Joints
The technique matters as much as the station. Start at about 650F for leaded solder on 0.8 mm leads, and 750F for lead-free work, then raise in small steps if the solder will not flow. Forum consensus across electronics communities is consistent on that starting point: just above 600F for leaded, and higher if it will not wet the pad.
1. Heat the pad and the lead together. Touch the iron to the ring and the lead at the same time rather than touching solder to a cold tip, because heat applied to the solder alone just runs off the iron.
2. Feed solder to the far side of the joint. Once the solder starts to melt and shine, move the iron to touch the solder wire so it wets the pad.
3. Watch the solder spread rather than pushing it. A good joint pulls solder into a concave fillet and wets the lead sides. If solder balls on top of the pad, the pad is not hot enough.
4. Pull the solder away first, then the iron. Dragging the iron out while solder is still feeding smears the joint and lifts a cold tip off the pad.
5. Hold the board still for a second or two. Lead-free solder cools slower and is more prone to movement damage while it freezes.
6. Tin the tip and leave it. An untinned tip oxidises overnight and becomes an insulator, which is the most common reason a station seems to have lost power overnight.
What to Check Before Buying a Through-Hole Station
Wattage and recovery together. A headline wattage figure means little on its own, because plenty of stations advertise high numbers and deliver less actual heating. The number that matters is how the iron behaves on contact with a cold, large pad. Anything at 60W handles ordinary 0.8 mm through-hole leads; 75W and above gives you headroom for terminals, ring lugs, and ground planes.
Temperature stability, not maximum temperature. The highest number on the display is the least useful figure on a station. Stability figures around ±2C to ±4F mean the tip holds its set point when you touch the joint, which is what produces repeatable results. The Weller WE1010NA is published at ±4F, the X-Tronic 3020-XTS at 2C, and the TOAUTO DS90 at 2C.
Tip family lock-in. This is the most common purchase regret in the hobby. The Weller WE1010NA uses WEP70 tips, the WEP 927-IV uses WEP 1400 tips, and generic platforms are not interchangeable with either. Check the tip family before you buy, because replacement tips are a recurring cost for the life of the station.
ESD safety and isolation. Look for an ESD-safe chassis, a grounding terminal, and a low-voltage output at the tip. The YIHUA 939D+ makes this explicit with a built-in transformer that outputs contact-safe voltage, and the TOAUTO DS90 and X-Tronic kits both include an anti-static grounding wire.
Voltage and plug. Most of these are 110V or 120V US units, and X-Tronic states plainly that its 3060-PRO is 110V/60Hz only with no 220V variant. For anyone outside North America, a 100-240V unit or a step-down converter is required, and this is a real source of wasted purchases.
Kit versus station only. The Weller ships as a tool: iron, rest, retainer, screwdriver. The YIHUA, WEP, TOAUTO, and Crtsweker kits add helping hands, tips, solder, and a solder sucker. If you are starting out, a kit genuinely is the cheaper path; if you already have tips and solder, the bare station is lighter on the bench.
Sleep and standby. Auto setback is the cheapest tip-life protection available. A station that drops to a lower temperature after ten minutes of inactivity loses far less tip plating than one that idles at 750F all afternoon. This is the feature people notice most after moving up from a pencil iron.
Legacy irons versus modern stations. Long-standing EEVblog forum consensus holds that the classic Weller TCP irons remain excellent for through-hole soldering and cable work, and that view has not gone away. They are heavy, thermally simple tools that deliver a lot of heat into a joint. What a modern temperature-controlled station adds is repeatability, tip availability, and a heater you can dial to a lead-free number, which is why both kinds turn up on working benches.
Through-Hole Desoldering: Wick, Pump, Hot Air or Desoldering Gun
Desoldering through-hole components is a separate purchase that most people forget, and it is where a lot of through-hole frustration actually comes from. There are four practical methods, and they suit different jobs.
Wick plus iron. The cheapest and best for small joints, headers with lots of pins, and cleaning up a single pad. Coat the braid with flux, press it onto the joint with the iron, and pull it while everything is still liquid. It is slow but it will not lift pads on multilayer boards.
Desoldering pump. Included with most of the kits above, including the YIHUA 926 III, the TOAUTO, and the Crtsweker. Heat the joint until the solder flows, then trigger the pump before the solder freezes. It works well on a single component with a real thermal mass behind it.
Hot air rework. The right answer for multi-pin parts and connectors where you do not want to heat each leg individually. The risk is lifting pads or a connector plastic housing, so keep the airflow moving and work with the board at a slight angle.
Dedicated desoldering gun. The fastest and most controllable method for through-hole work, because the heated nozzle surrounds the leg and melts everything at once while a vacuum pulls the solder out. It is the only option on this list that scales to repetitive rework, which is why operators assembling or repairing hundreds of through-hole boards a year eventually move to a bench with desoldering capability.
For most through-hole builders, a pump plus a roll of wick covers 90% of removal jobs. If your work includes regular rework rather than one-off builds, budget for a proper gun rather than trying to make removal work with an iron alone.
Frequently Asked Questions
What type of soldering tip is best for through-hole soldering?
A chisel tip is the best general choice. Its flat face contacts the whole pad at once, transfers heat evenly, and lets solder flow into the joint barrel without dragging a point across the solder mask. Use 1.0-1.6 mm for 0.8 mm leads and 2.0-3.0 mm for ring terminals and power parts. A knife tip is faster for drag soldering and multi-pin headers, while conical and hoof shapes are for surface-mount precision work.
What is the best soldering station for professional use?
The Weller WE1010NA is the strongest all-round choice here. Its 70W iron has real headroom for large through-hole joints, temperature stability is published at ±4F, and temperature lock keeps repeated joints at the same number. Standby mode and auto setback protect the tip, and the 3-year-warrantied X-Tronic 3020-XTS is the alternative for buyers who want long-term parts support.
How to solder through a hole?
Heat the pad and the component lead at the same time, then feed solder to the far side of the joint. Let the solder melt and spread into a concave fillet instead of pushing it, pull the solder away before the iron, and hold the board still while it cools. Start near 650F for leaded solder on 0.8 mm leads and around 750F for lead-free work.
What is the golden rule of soldering?
Heat the joint, not the solder. Solder should never be melted against a cold tip and pushed onto a cold pad, because it cools before it wets the copper and produces a dull, grainy cold joint that fails electrically or mechanically later. A good joint is shiny and slightly concave, wetting the lead and the pad surface.
Which soldering station is better, the Weller or the Hakko?
Both ecosystems are respected and neither has a through-hole-specific winner on paper. The Weller WE1010NA in this roundup publishes ±4F stability with temperature lock and a 70W iron, while Hakko is the name that appears most often in electronics forums for tip availability and repairability. Choose by tip family and support in your region as much as by specification.
Which Hakko soldering station is considered the best?
Community consensus across electronics forums points to the Hakko FX-888D and the FX888DX as the most-recommended Hakko models, with the rotary encoder on the DX version fixing the slow interface of the earlier unit. Neither appears in this roundup because we tested nine stations; if you want the Hakko route, treat the FX888DX as the model to research first.
Final Verdict: The Through-Hole Station to Buy in 2026
The Weller WE1010NA is our pick for the best soldering stations for through hole work in 2026. The 70W iron, published ±4F stability, and temperature lock are exactly the combination that keeps large joints off the cold-joint list, and the 4.7 rating across 4670 reviews is the strongest consensus here.
For big terminals, heavy wire, and a station you expect to keep for years, the X-Tronic 3020-XTS is the runner-up, with a replaceable element, a 3-year warranty, and even tip heating that experienced users single out. For a first board, the YIHUA 926 III kit gives you helping hands, tips, solder, and a solder sucker in the box at a rating of 4.4 from 7159 reviews.
Whichever you pick, check the voltage rating before you order, keep a chisel tip in the roll, and never put a cold tip back in the holder. Those three habits matter more to joint quality than any number on the box.
