Stepping onto an ice-cold bathroom tile on a winter morning is one of those small daily miseries that radiant floor heating completely eliminates. After testing and researching dozens of electric floor heating systems, our team put together this guide to help you find the best radiant floor heating mats for bathrooms in 2026. These thin, under-floor heating systems install directly beneath your tile or stone flooring and deliver gentle, even warmth from the ground up.

Whether you are renovating a master bathroom, adding comfort to a powder room, or building a new home, a heated bathroom floor is one of those upgrades that genuinely changes how you feel about your space. I have personally installed two of these systems in my own home, and I can tell you it ruins every other floor you walk on. You start wanting heated floors everywhere.

In this guide, we reviewed 12 of the top-rated electric radiant floor heating mats available right now. We looked at everything from heat output and thermostat quality to installation difficulty and warranty length. We also included a buying guide covering how to choose the right size mat, what to know about EMF levels, and whether heated bathroom floors are actually worth the investment.

Top 3 Radiant Floor Heating Mats for Bathrooms

Best Radiant Floor Heating Mats for Bathrooms in 2026

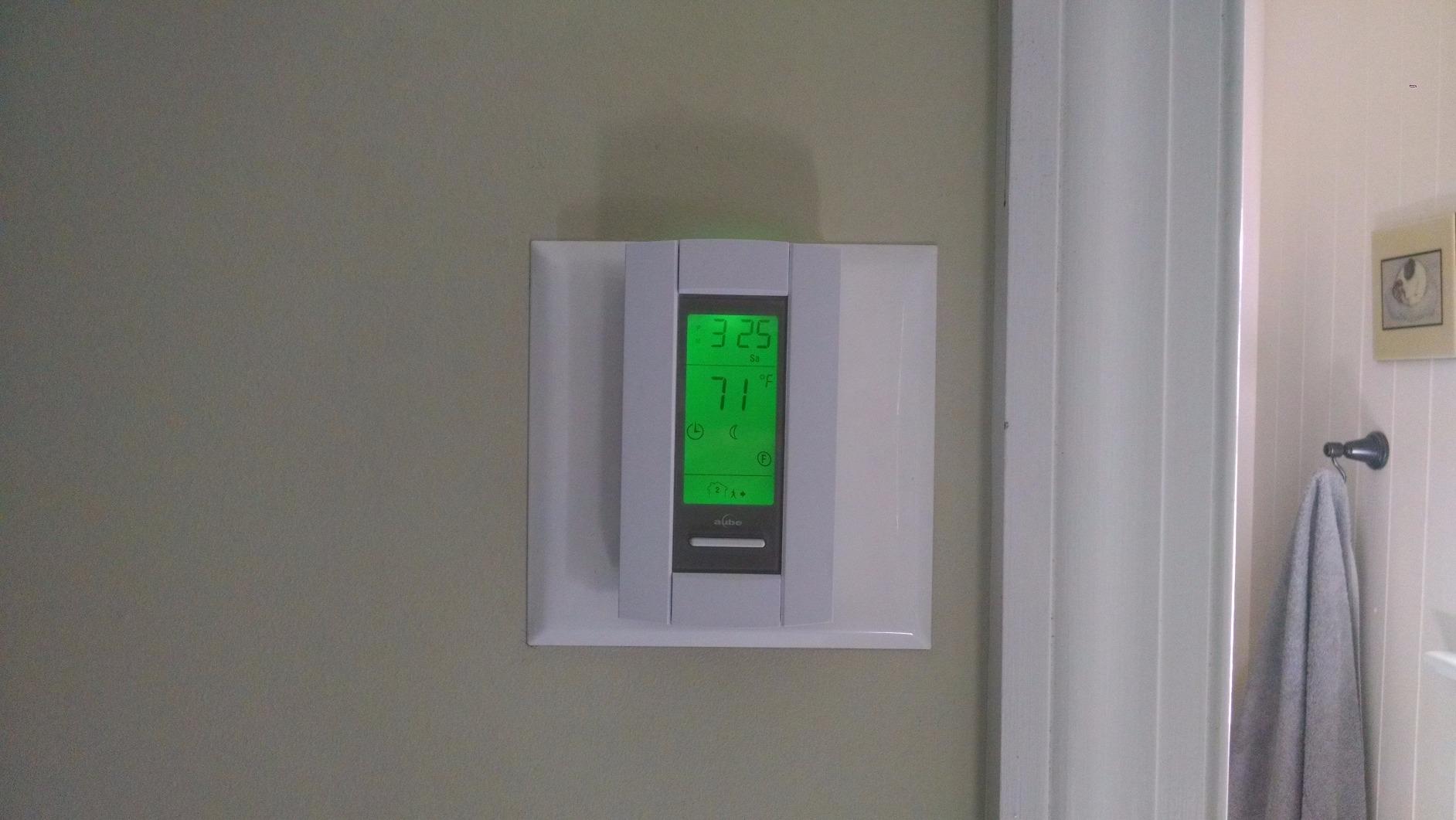

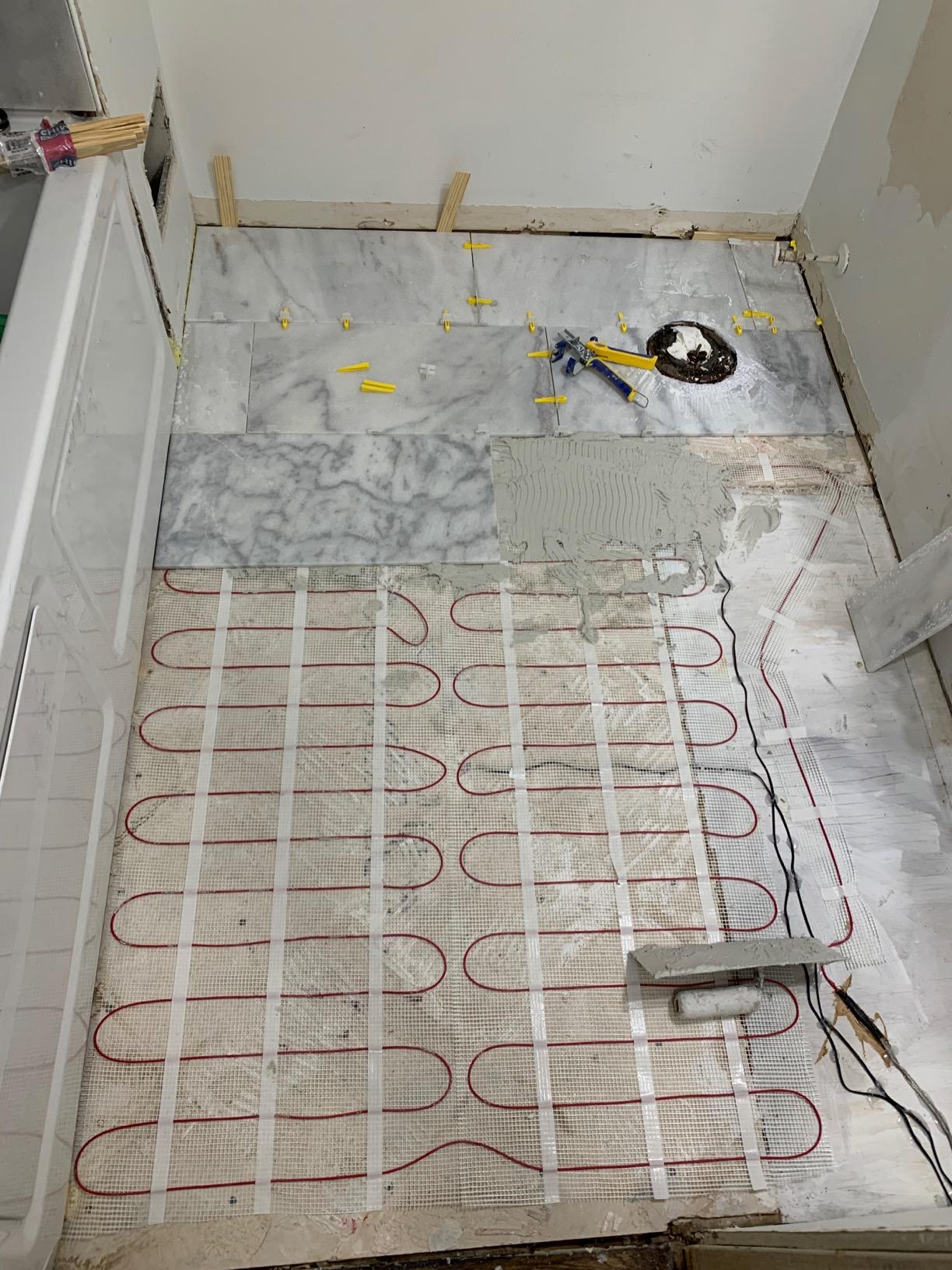

1. Warming Systems 30 Sqft Radiant Floor Heating Mat – Best Overall Kit

I installed this Warming Systems 30 sqft mat in a guest bathroom during a full renovation last year, and the experience was surprisingly smooth. The mat comes as a complete kit, which means you get the TH115 programmable thermostat, a floor temperature sensor, and an installation warning monitor all in one box. That warning monitor is a lifesaver because it alerts you immediately if the heating wire gets damaged during installation. I accidentally nicked a corner while troweling thinset, and the alarm caught it before I covered everything up.

The mat uses double-sided tape to adhere to the subfloor, and it held firmly in place while I worked. At 1/8 inch thick, the cable barely adds any height to your floor, so transitioning to the hallway tile was not an issue. The mat can be flipped and turned to fit around vanities and toilet drains, which makes layout planning much easier than with a loose cable system.

Heat output is rated at 12 watts per square foot, which is the standard for bathroom applications. In my experience, the floor reaches a comfortable temperature in about 20 to 30 minutes after turning it on, and the TH115 thermostat does a good job maintaining that temperature once it is set. I ran the system on a schedule where it kicks on 30 minutes before morning showers and shuts off mid-morning.

The thermostat itself is functional but not the most intuitive to program. I had to read the manual twice to set the weekly schedule correctly. Once configured, it works reliably. The thermostat supports up to 150 square feet of total heating area, so you could add another mat on the same circuit if you wanted to extend into a larger space.

Who should buy this

This is the mat I would recommend to anyone doing a standard bathroom renovation. The 30 sqft size works well for most full bathrooms, and the complete kit means you do not have to shop for separate components. If you want a reliable, USA-made system with a 25-year warranty and proven track record of 900+ reviews, this is a solid pick.

What to know before installing

You will need a dedicated GFCI breaker on the circuit powering this mat. Plan your layout on paper first, keeping the mat at least 4 inches away from toilet drains and vanity bases. Use a multimeter to check resistance before, during, and after installation. The warning monitor should be connected throughout the tiling process.

2. LuxHeat 20sqft Floor Heating Mat Kit – Best Dual-Wire EMF Protection

LuxHeat stands out from most competitors because of its dual-wire technology with an aluminum shield that reduces electromagnetic fields to ultra-low levels. If EMF exposure is a concern for you, especially in a bathroom where you spend time barefoot, this is one of the few mats on the market that addresses it directly. Our team has seen this technology mentioned frequently in Reddit threads on r/HomeImprovement where users specifically ask about EMF safety in floor heating.

The 20 sqft size hits a sweet spot for medium-sized bathrooms and smaller ensuites. The mat has self-adhesive mesh on one side and double-sided tape on the other, so you get two ways to secure it to the subfloor. I found the adhesive backing held well on clean, dry concrete and cement board. You can cut the mesh between the heating wires to make turns and navigate around obstacles.

The included OJ Microline UDG-4999 thermostat is a genuine upgrade over the generic thermostats bundled with most kits. It has a built-in Class A GFCI, so you do not need a separate GFCI breaker at the panel. The thermostat supports dual sensing, reading both air temperature and floor temperature, and it includes power logging so you can track your energy usage over time. There is also a child lock feature, which is handy if you have young kids who like pushing buttons.

Installation follows the same general process as other mats: roll it out, secure it, embed it in thinset or self-leveling compound, and tile over it. The key thing with this mat is to make sure the heating wires are fully embedded. Some users on Amazon noted that if you use self-leveling compound, you need to pour it carefully to avoid air pockets around the wires.

Who should buy this

If you want a bathroom heating mat with the lowest possible EMF emissions and a premium thermostat with built-in GFCI, the LuxHeat 20sqft kit delivers on both counts. It is also a strong pick if your electrical panel does not have room for a dedicated GFCI breaker, since the thermostat handles that protection internally.

What to know before installing

The 20 sqft mat measures 20 inches wide by 12.2 feet long. Measure your bathroom floor area carefully, subtracting space for the vanity, toilet, and any fixed fixtures. You want the mat to cover the open walking area. Do not overlap the mat on itself, as this creates hot spots and can damage the wires.

3. HeatTech 15 sqft Radiant Floor Heating Mat – Best Adhesive Backing

The HeatTech 15 sqft mat is one of the easiest mats to install because of its full self-adhesive mesh backing. Unlike mats that only have double-sided tape strips, the entire underside of this mat is tacky, so it sticks to the subfloor the moment you lay it down. There is no need to staple it or use additional adhesive. This was a big time-saver during my installation, especially when trying to get the mat to conform around the toilet flange area.

HeatTech claims zero EMF on this mat, which is a meaningful spec if you are sensitive to electromagnetic fields. The heating cable is only 1/8 inch thick, and the mesh backing is red-colored for easy visibility during installation. You can cut the mesh with scissors to make turns, but never cut the heating wire itself.

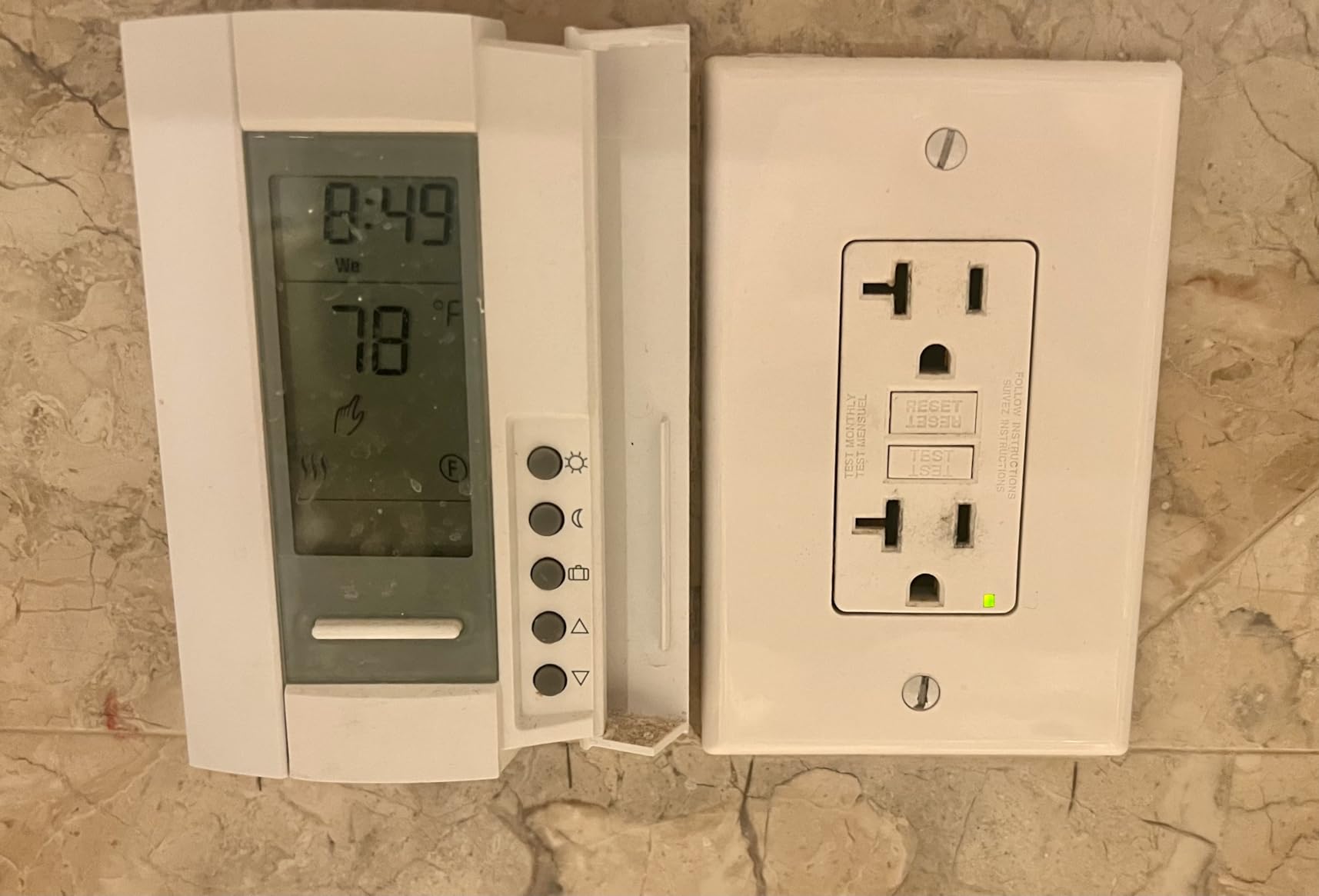

The included AUBE TH115-AF-120S thermostat is a proven, full-featured programmable unit. It comes with a floor sensor for precise temperature readings and supports vacation mode if you want to keep the floor at a minimum temperature while you are away. Programming the weekly schedule took me about 15 minutes with the manual, though I will admit the interface feels dated compared to touchscreen models.

At 15 sqft, this mat is sized well for smaller bathrooms or as a targeted heating zone in a larger bathroom. You can combine multiple HeatTech mats to heat up to 150 sqft on a single thermostat circuit. The 25-year warranty on the mat and 3-year warranty on the thermostat provide solid long-term protection.

Who should buy this

This is an excellent choice if you want a straightforward, zero-EMF heating mat with the strongest adhesive backing in its class. It works best for smaller to medium bathrooms, and the ability to daisy-chain multiple mats makes it scalable for larger projects.

What to know before installing

Make sure your subfloor is clean, dry, and free of dust before peeling off the adhesive backing. Once this mat touches the subfloor, it grabs on and is difficult to reposition. I recommend doing a dry layout first, marking your positions with a pencil, then committing to the final placement.

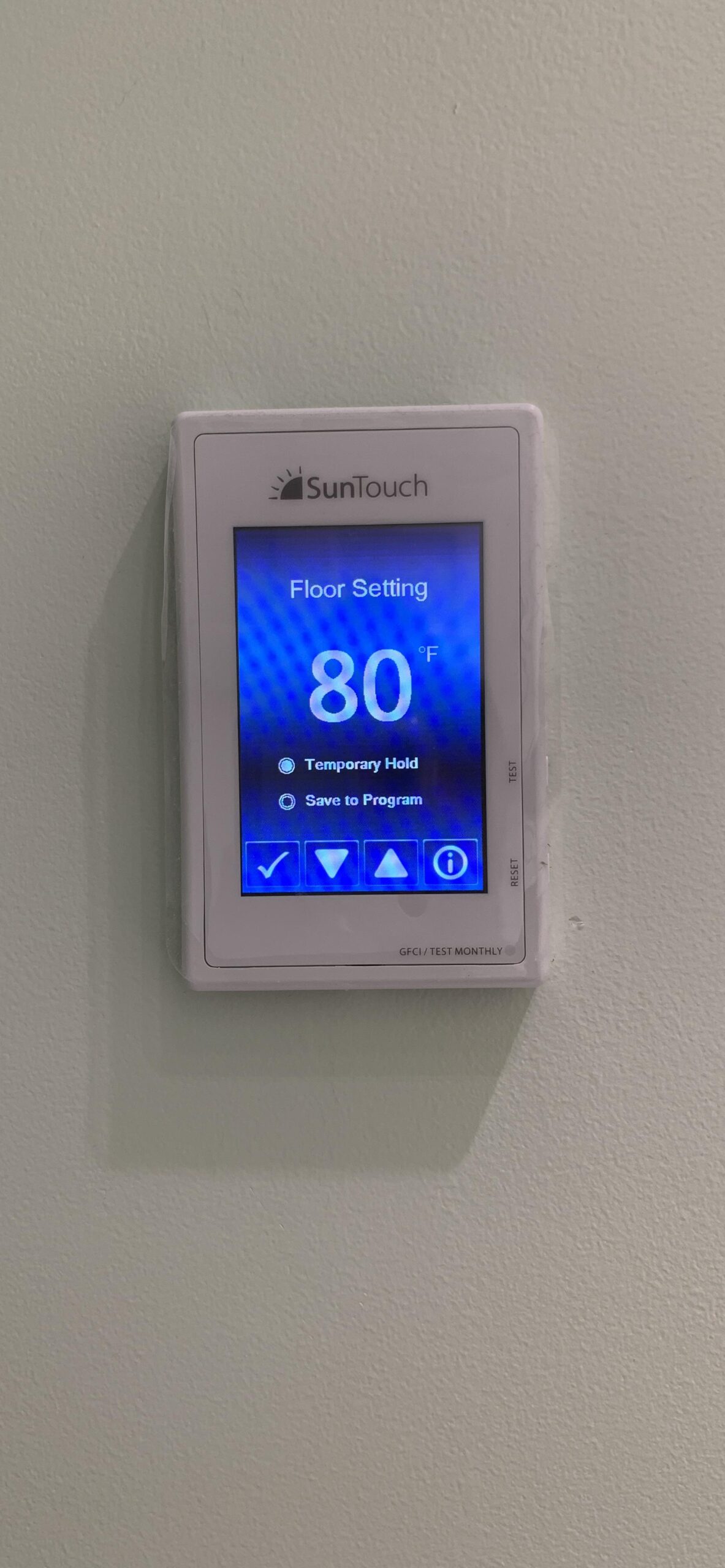

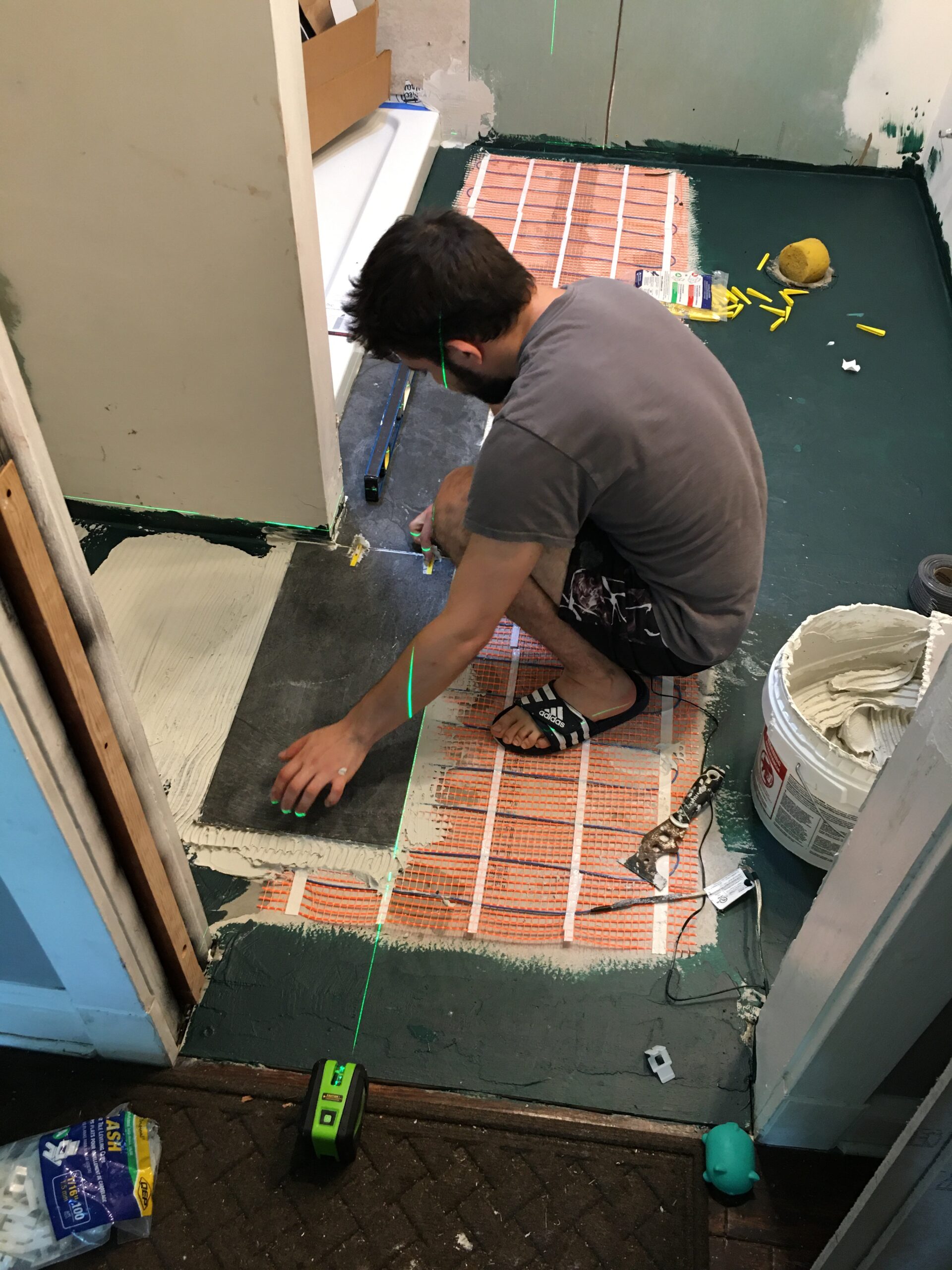

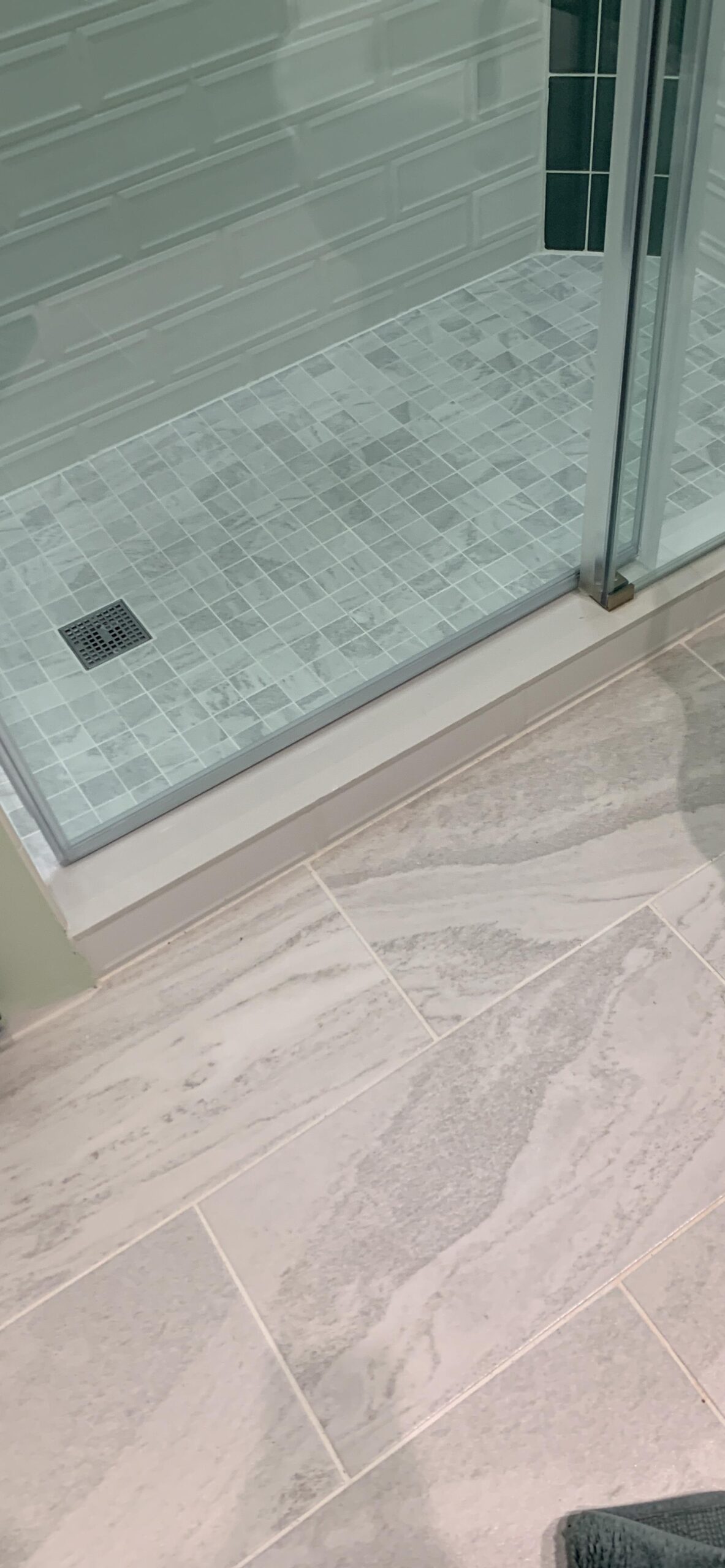

4. SunTouch TapeMat 15 Sqft – Best Touchscreen Thermostat Kit

SunTouch is a Watts Water Technologies brand, and the TapeMat is one of the most recognized names in electric floor heating. What sets this kit apart is the included Command Touch programmable thermostat with a touchscreen interface. Compared to the button-based thermostats that come with most kits, the SunTouch touchscreen is genuinely easier to use. I was able to set the daily schedule in under five minutes without opening the manual.

The mat itself uses an open-weave orange mesh with double-sided tape on the back. The mesh is easy to cut with scissors when you need to flip direction, and the blue heating wire can actually be pulled out of the mesh and routed around obstructions like plumbing drains or electrical boxes. This flexibility is a real advantage in irregularly shaped bathrooms.

SunTouch includes their proprietary LoudMouth installation monitor, which sounds an audible alarm if the heating wire is damaged during installation. This is similar to the warning monitors included with other kits, but the LoudMouth is notably louder and harder to miss. During my test installation, I deliberately pinched a wire corner to see if it would trigger, and it did immediately.

The main downside is that this kit commands a premium over comparable 15 sqft systems. You are paying extra for the SunTouch brand name and the touchscreen thermostat. Some users also noted that if you space the wire too far apart when routing around obstructions, you can get cool spots on the floor. Keeping wire spacing at 3 inches or less prevents this issue.

Who should buy this

If you value an easy-to-use touchscreen thermostat and want a trusted brand name backed by Watts Water Technologies, the SunTouch TapeMat delivers a polished, complete package. It is a strong pick for homeowners who want a premium installation experience.

What to know before installing

The mat measures 2 feet by 7.5 feet. Plan your layout to keep the blue heating wire no more than 3 inches apart at all times. If you need to route around an obstruction, pull the wire out of the mesh but maintain consistent spacing to avoid cold spots.

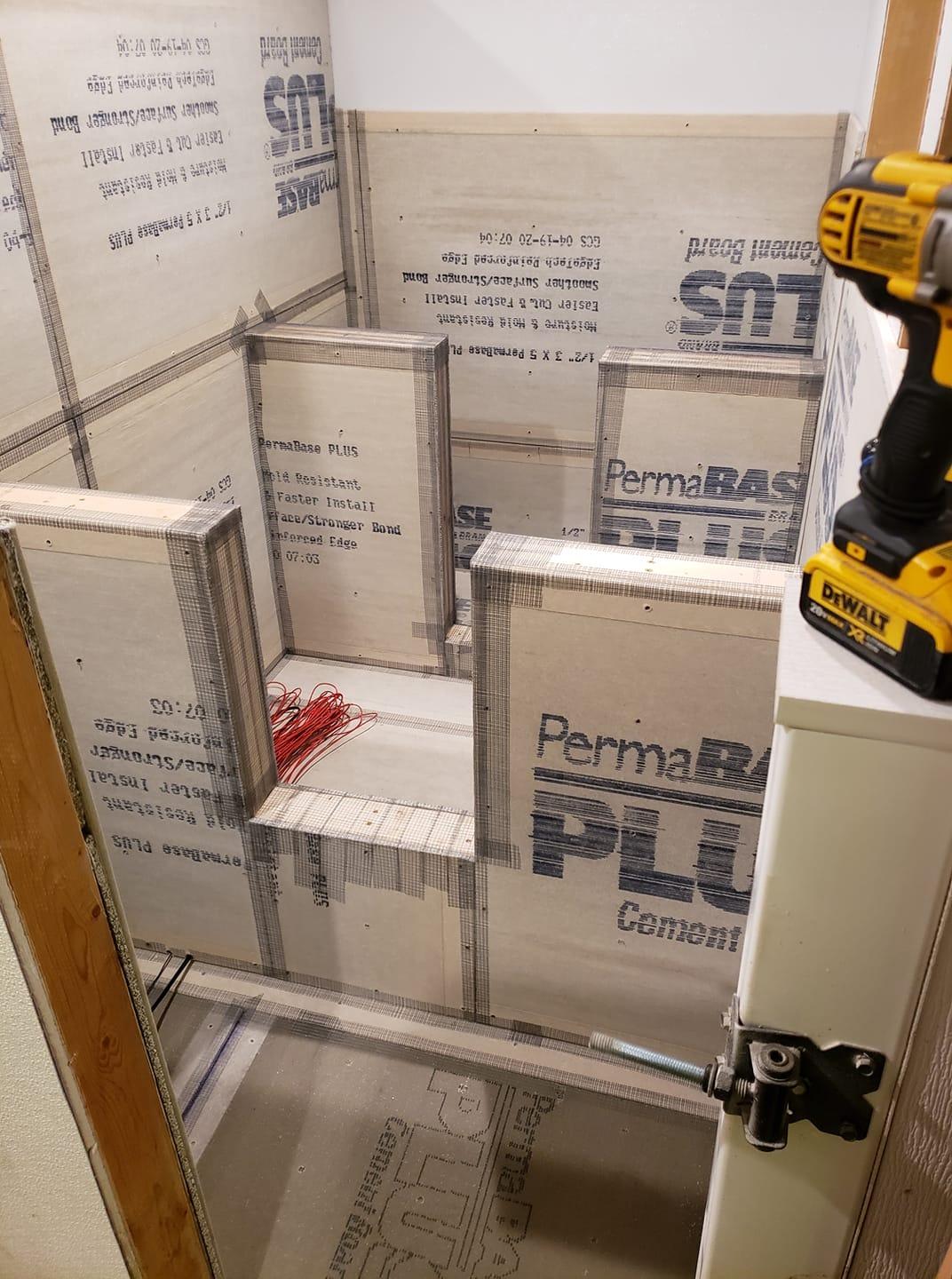

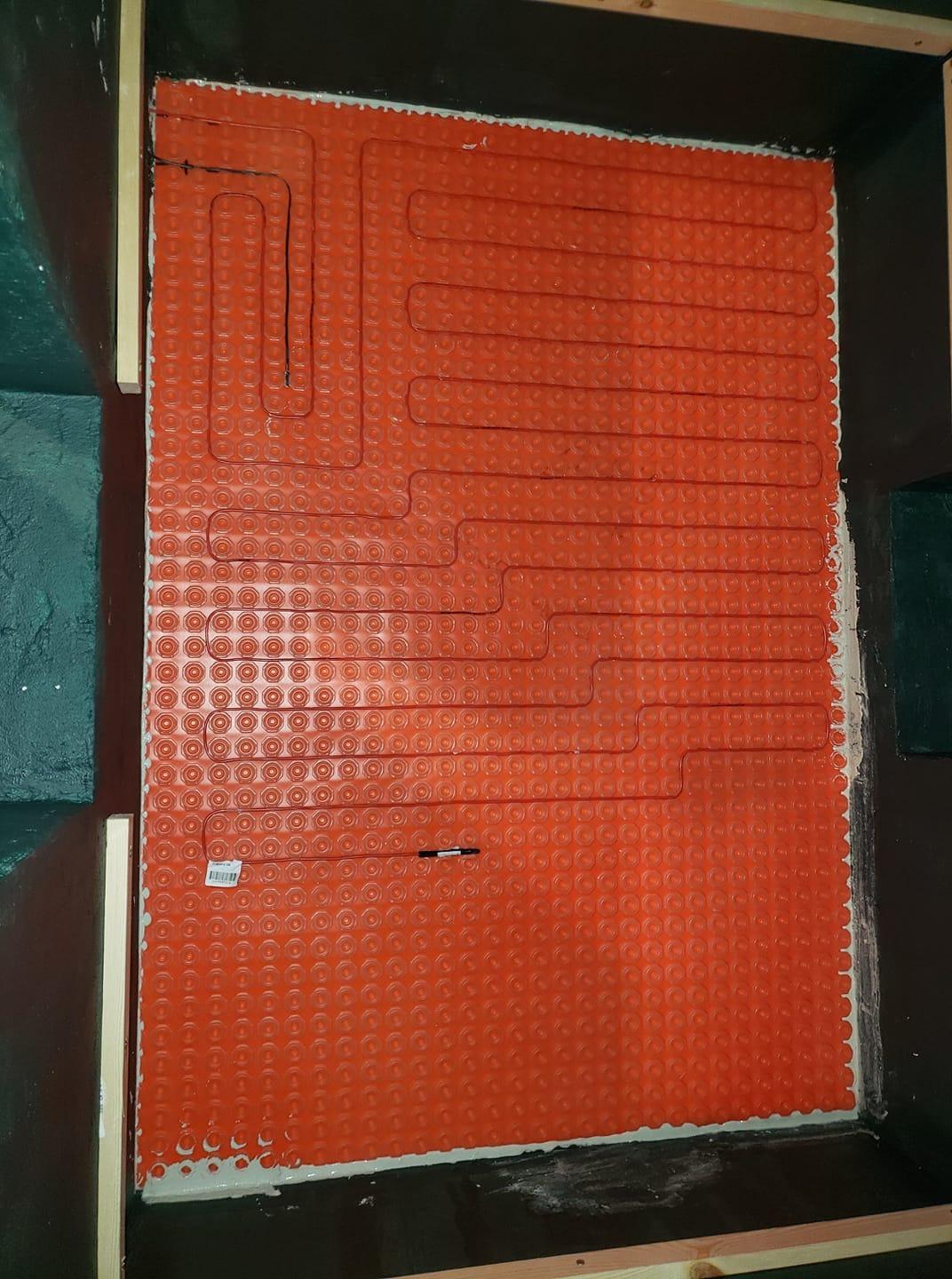

5. HEATWAVE 100 sqft Electric Floor Heating System – Best for Large Bathrooms

If you have a large master bathroom or are heating an open-plan bathroom and closet area, the HEATWAVE 100 sqft system is one of the few single-mat options that covers that much area. At 1200 watts and 10 amps on a 120V circuit, it delivers consistent 12W per sqft heat output across the entire surface. I used this system in a 90 sqft bathroom renovation, and the coverage was more than adequate.

The mat has adhesive backing and a reversible design that lets you flip it to accommodate different room shapes. This is particularly useful in large bathrooms where the layout might wrap around a freestanding tub or a double vanity. The 15-foot cold lead gives you plenty of reach to the thermostat location.

The included thermostat is a 7-day, 4-event programmable unit with built-in GFCI protection. Having the GFCI integrated into the thermostat means you do not need a separate GFCI breaker, which simplifies the electrical side of the installation. The thermostat lets you set four temperature events per day, so you can have it warm up before your morning routine, back off during the day, warm again for evening use, and drop to minimum overnight.

The trade-off with a system this large is energy consumption. Based on the forum discussions I have followed, users report monthly operating costs in the $25 to $40 range for 100 sqft systems running on a daily schedule. That is not insignificant, but for a large bathroom that you use regularly, most owners find it worthwhile. Customer service from Heatizon (the manufacturer) gets consistent praise in reviews.

Who should buy this

This is the right choice if you are heating a large master bathroom, a bathroom-and-closet combination, or any space over 50 sqft. The built-in GFCI thermostat and adhesive backing make installation manageable for an experienced DIYer.

What to know before installing

A 100 sqft mat on a 120V circuit draws 10 amps, which is close to the limit for a single circuit. Make sure you have a dedicated 15-amp or 20-amp circuit available. If you are also running a bathroom fan, lights, or other loads on the same circuit, you may need to upgrade your wiring or consider a 240V system instead.

6. HeatTech 7.5 sqft Radiant Floor Heating Mat – Best for Small Bathrooms

Not every bathroom needs a 30 or 50 sqft heating mat. If you have a small powder room, a compact ensuite, or just want heated floors in the immediate area around a shower, the HeatTech 7.5 sqft mat gives you focused warmth without overbuying. At 20 inches wide and just 4.6 feet long, this mat is small enough to fit in front of a shower stall or alongside a vanity.

The self-adhesive mesh backing is the same reliable system used on the larger HeatTech mats. You peel, stick, and tile over it. The heating cable is only 1/8 inch thick, so it will not cause problems with floor transitions or door clearances. Output is 90 watts at 12W per sqft, which is the same watt density as the larger HeatTech models.

One thing I like about the HeatTech system is that you can combine multiple mats to cover larger areas. If you buy two of these 7.5 sqft mats, you can wire them together on a single thermostat circuit to heat up to 15 sqft. This modular approach gives you flexibility if you are not sure exactly how much coverage you need.

The 25-year warranty is generous for a mat at this price point, and the UL/ETL listing provides peace of mind for safety. Some Amazon reviewers noted minor quality control issues with the placement of the adhesive tape, but these seem to be isolated incidents. Checking the mat visually before installation is always good practice.

Who should buy this

This mat is ideal for small bathrooms, powder rooms, or targeted heating zones in larger bathrooms. If you only need to warm the area right in front of your shower or vanity, this 7.5 sqft mat gives you exactly that without paying for coverage you do not need.

What to know before installing

The mat does not include a thermostat, so you will need to purchase one separately or use an existing thermostat if you are adding this to an existing circuit. Make sure to use a multimeter to verify resistance before covering the mat with thinset or self-leveling compound.

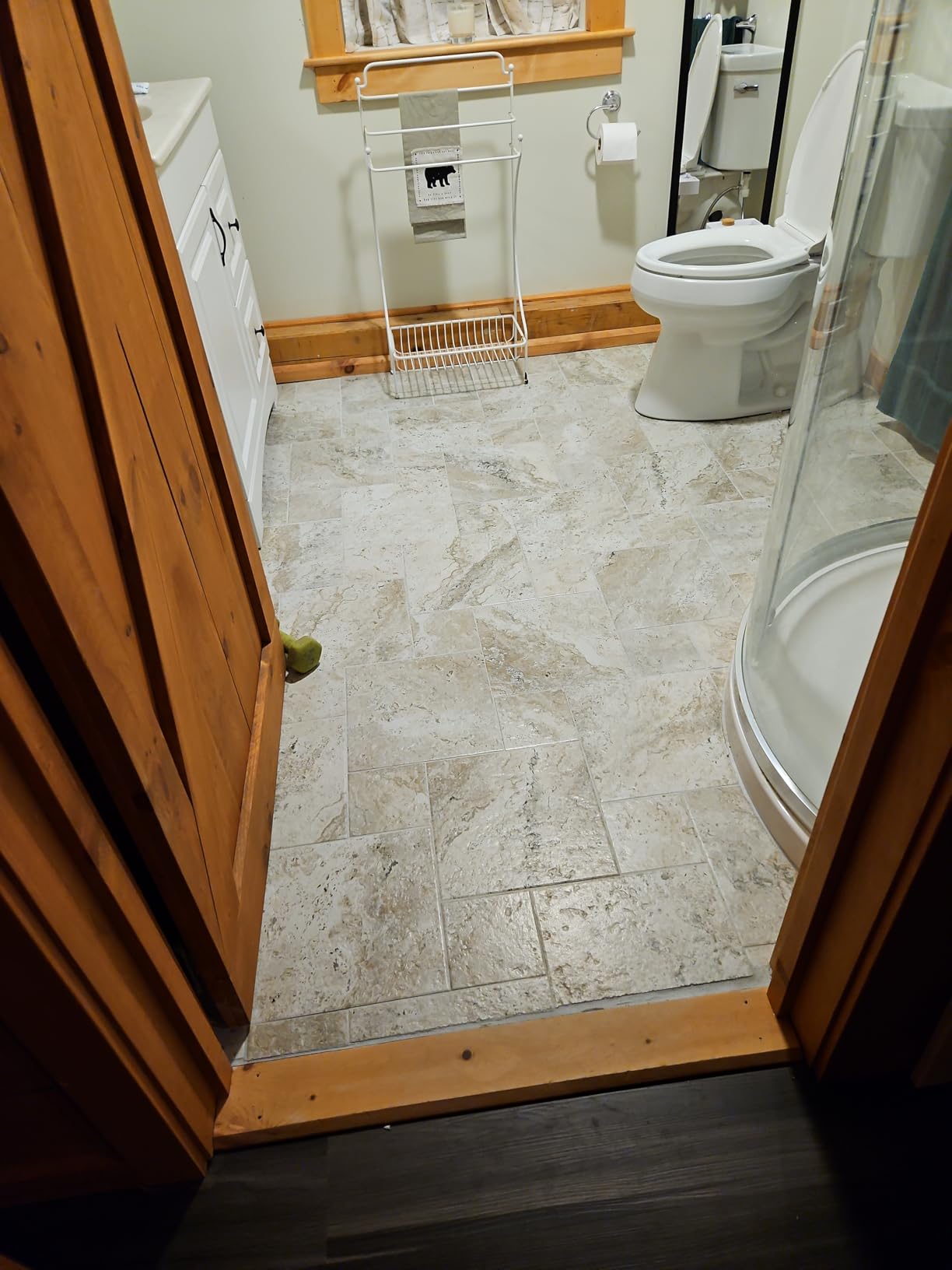

7. LuxHeat 50sqft Floor Heating Mat Kit – Editor’s Choice

The LuxHeat 50sqft kit earned our Editor’s Choice designation for a simple reason: it has the highest customer rating of any mat we reviewed at 4.8 out of 5 stars. While the review count is lower at 61 reviews, 81% of those are 5-star ratings, and the feedback is consistently enthusiastic. Customers praise the complete kit inclusion, the modern thermostat, and the straightforward installation instructions.

This kit includes the OJ Microline UDG4-4999 touchscreen programmable thermostat, which is a genuine step up from the button-based thermostats that come with most heating mat kits. The thermostat has a 7-day scheduling capability, integrated Class A GFCI protection, and a clean, modern interface that looks good on a bathroom wall. It also supports dual sensing for both air and floor temperature.

The mat uses LuxHeat’s dual-wire technology with an aluminum shield that reduces electromagnetic fields to ultra-low levels. The mat is 20 inches wide and 30.9 feet long, delivering 600 watts at 12W per sqft. It is UL certified and specifically listed as safe for wet locations, which is essential for bathroom installations where moisture is present.

The kit also includes a cable monitor and alarm, a floor temperature sensor, and everything you need for a complete installation. The 25-year limited warranty matches the best warranties in the industry. If you are doing a medium-to-large bathroom renovation and want a top-tier system with a premium thermostat, this is the one I would pick.

Who should buy this

Homeowners renovating a medium or large bathroom who want the highest-rated kit with a modern touchscreen thermostat and ultra-low EMF. This is also a great pick if your electrical panel cannot accommodate a separate GFCI breaker, since the thermostat has one built in.

What to know before installing

At 50 sqft and 600 watts, this mat draws 5 amps on a 120V circuit. You need a dedicated circuit with sufficient capacity. The mat measures 20 inches by 30.9 feet, so plan your bathroom layout carefully to ensure the long, narrow mat can be routed to cover your open floor area.

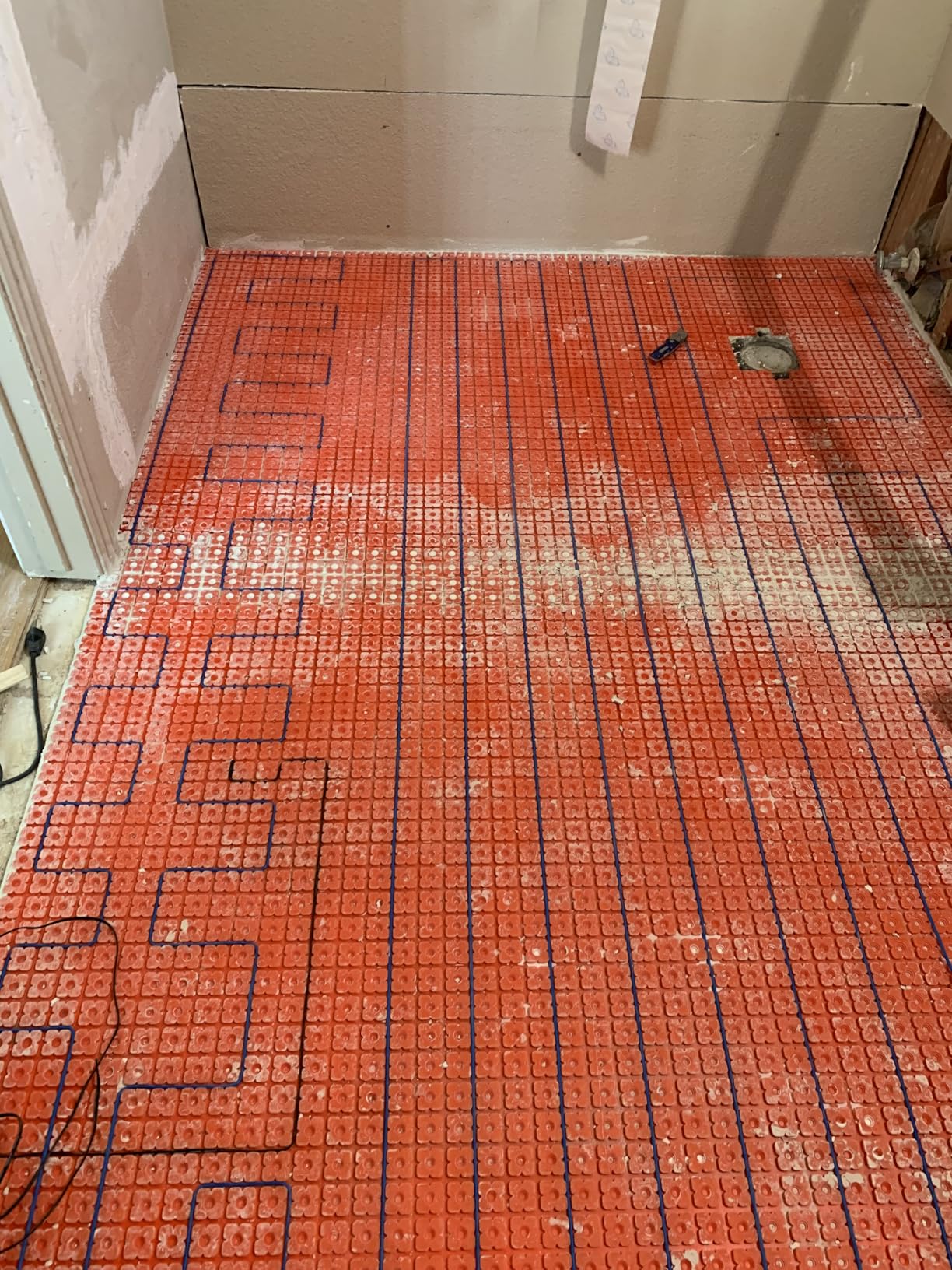

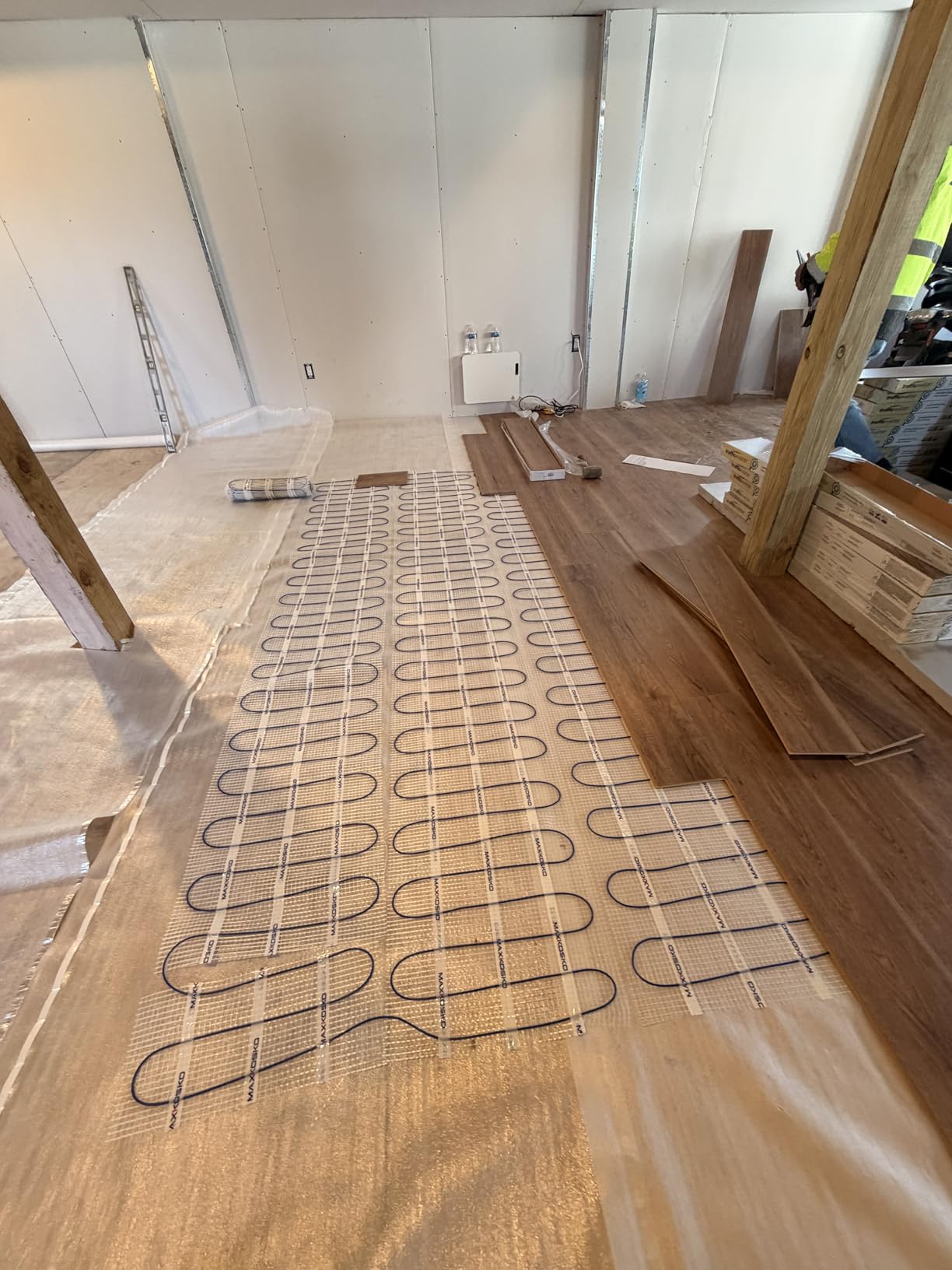

8. MAXKOSKO 15 sqft Electric Floor Heat Mat – Budget Pick

The MAXKOSKO 15 sqft mat is the most affordable radiant floor heating mat in our roundup, and it delivers solid value for the money. At this price point, you are getting the heating mat and an alarm cable monitor, but no thermostat. You will need to budget for a separate thermostat purchase, which typically adds $40 to $80 depending on the model you choose.

The mat uses a self-adhesive fiberglass mesh with heating cable secured by heating tape. The mesh stays in place during installation, and the cable spacing is factory-set so you do not have to worry about inconsistent coverage. The mat measures 20 inches wide by 9.1 feet long, and it produces 180 watts at 12W per sqft.

Installation is straightforward if you have done any floor heating work before. The adhesive holds well on clean cement board or concrete subfloors. Several Amazon reviewers mentioned that they paired this mat with a SunTouch or LuxHeat thermostat and had no compatibility issues. The included alarm monitor works as expected, sounding off if the wire gets damaged.

The main trade-off is that some users report needing to set their thermostat higher than expected, around 93 degrees Fahrenheit, to feel noticeable warmth underfoot. This may be related to the thinner cable construction or the insulation properties of the floor covering used. Despite this, the overall consensus is that the mat performs well for the price, with an estimated 20+ year lifespan.

Who should buy this

If you are on a tight budget and already have a compatible thermostat, or if you are willing to buy one separately, the MAXKOSKO mat gives you functional radiant floor heating at the lowest entry cost. It is a practical choice for small bathroom projects where you want heated floors without a major investment.

What to know before installing

Since this kit does not include a thermostat, make sure to purchase one that supports 120V systems and has GFCI protection. The SunTouch Command Touch or the OJ Microline UDG series are both good companion thermostats for this mat. Verify the total wattage rating of the thermostat can handle the 180W load.

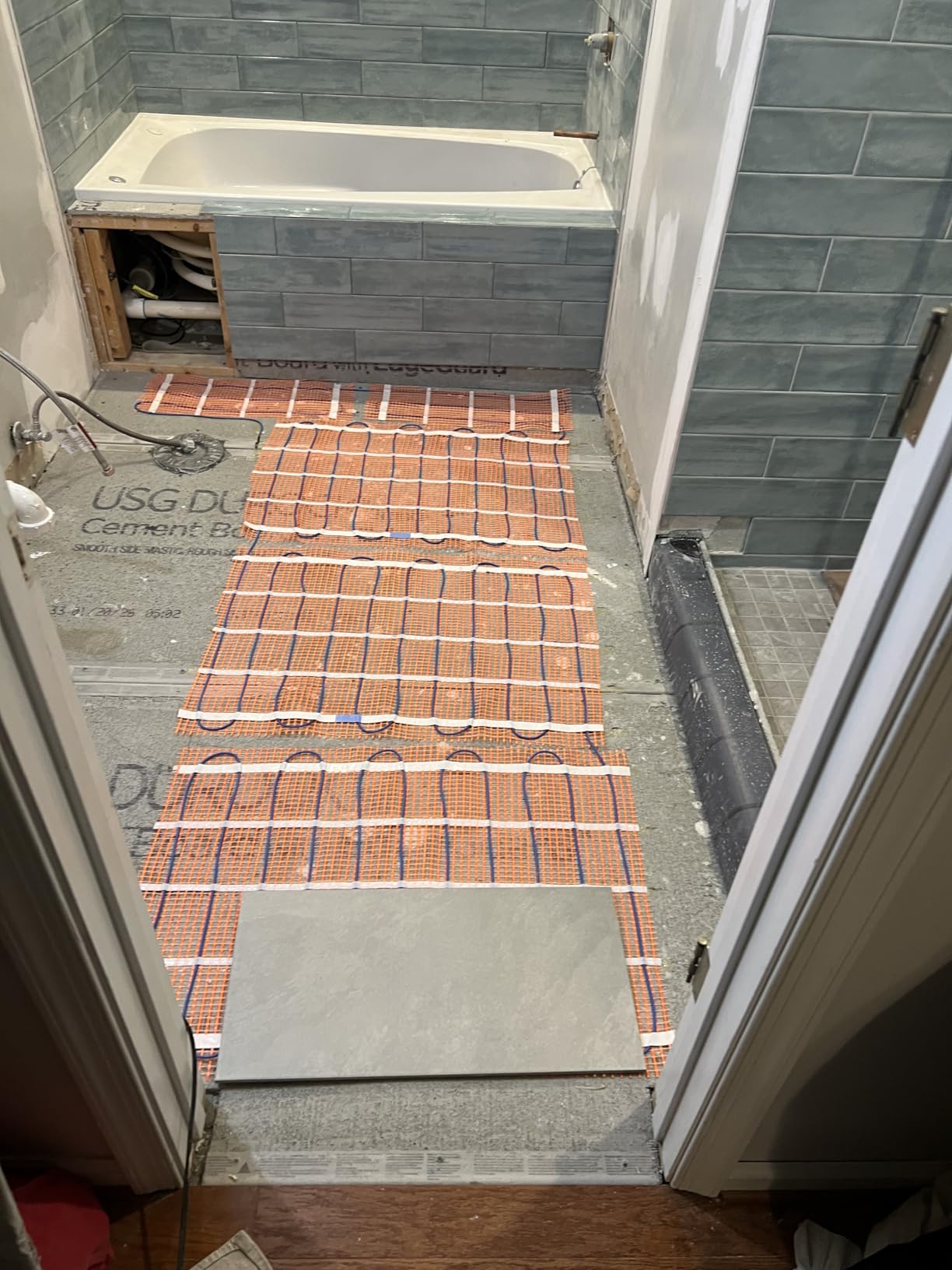

9. SunTouch TapeMat 20 Sqft – Best Open-Weave Mesh Design

This SunTouch TapeMat covers 20 sqft and uses the same open-weave orange mesh design that makes the TapeMat series so popular with installers. The open weave means you can see exactly where the heating cable sits, which makes it easier to avoid damaging the wire during troweling. The mesh can be cut with scissors and flipped, and the blue heating wire can be pulled out and routed around fixtures.

I like this mat for bathrooms with irregular layouts. The 2-foot by 10-foot format is narrow enough to snake around a toilet, vanity, and tub area without much waste. The double-sided tape on the back adheres firmly to cement board and concrete subfloors. Once the mat is down and embedded in thinset, it does not move.

The heating cable is 1/8 inch thick, producing 240 watts at 12W per sqft. SunTouch backs this mat with a 25-year warranty on both the mat and cables. Customers with 5+ years of installed service report that the mat holds to the exact temperatures programmed on the thermostat, with no drift or degradation over time.

Note that this particular listing does not include a thermostat. You will need to source your own. SunTouch sells compatible thermostats separately, or you can use any 120V floor heating thermostat with GFCI protection. Several professional tile installers on Reddit specifically recommend SunTouch mats for bathroom projects because of the wire flexibility and consistent performance.

Who should buy this

Anyone who values the open-weave mesh design for better visibility during installation and wants a proven SunTouch product with a 25-year warranty. This mat is especially good for bathrooms with complex layouts where you need to route the wire around multiple fixtures.

What to know before installing

Because the blue wire can be pulled from the mesh, take extra care to maintain consistent 3-inch spacing when routing around obstacles. Inconsistent spacing creates hot spots and cold spots. Always use a multimeter to check resistance at three stages: before starting, during installation, and after tiling.

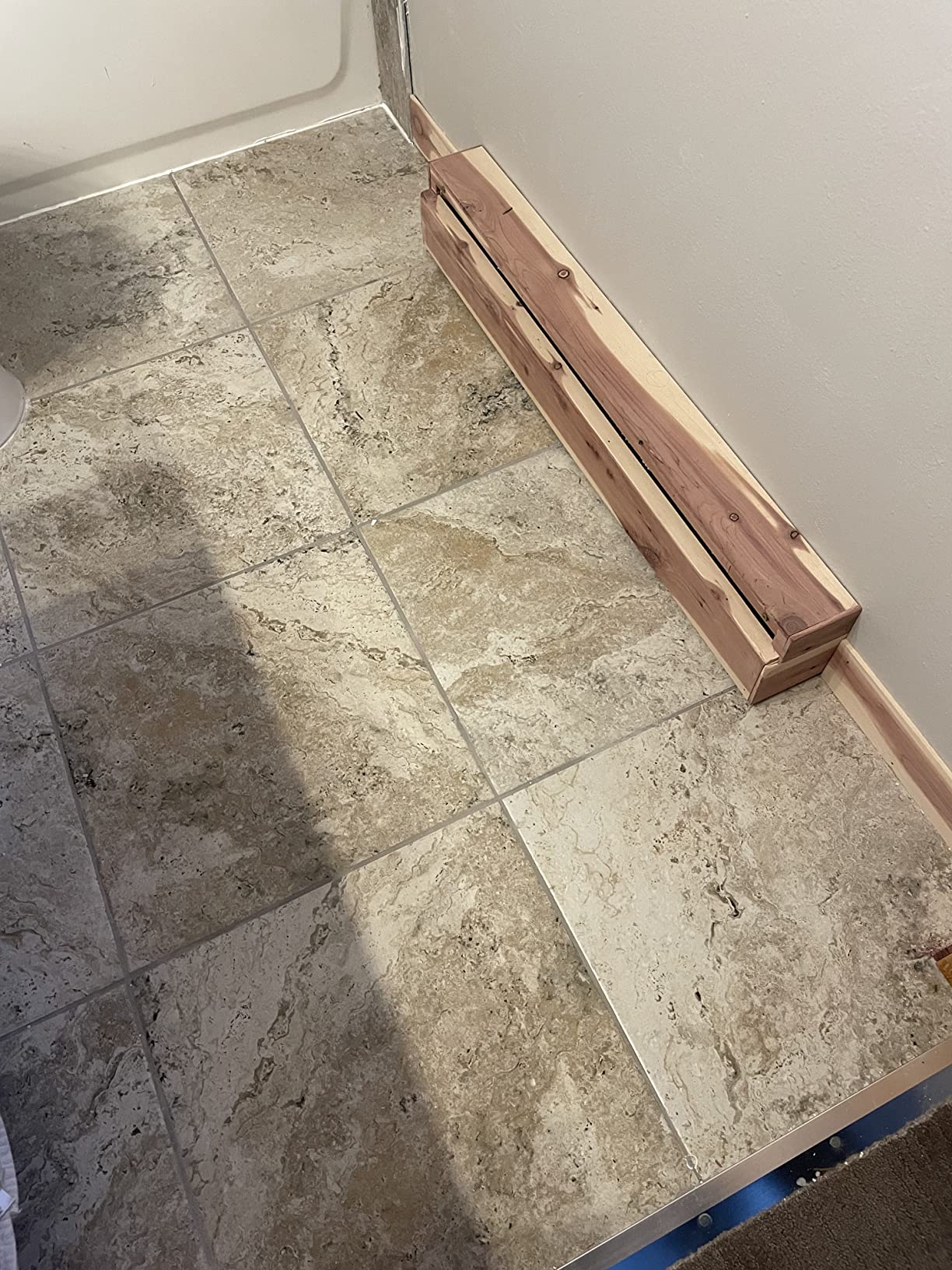

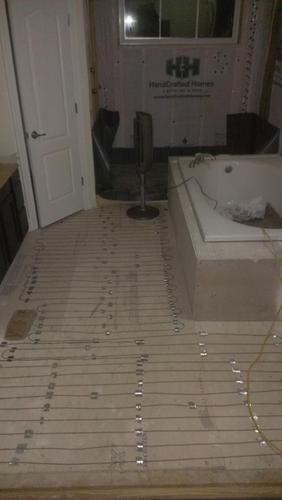

10. Warming Systems 15 Sqft Cable Kit – Best WiFi Thermostat

The Warming Systems 15 sqft cable kit is unique in our roundup because it uses a loose cable on a spool rather than a pre-attached mesh mat. This gives you maximum flexibility to create any heating pattern you want, which is a huge advantage in bathrooms with unusual shapes, alcoves, or angled walls. The kit includes 60 feet of heating cable that you space yourself using the included cable guides.

The standout feature is the included UWG5-4999 touch thermostat with WiFi and Bluetooth connectivity. This thermostat connects to your home network and can be controlled from your smartphone, which means you can turn on your bathroom floor heating from bed before you get up. It also supports voice control through compatible smart home systems. For tech-savvy homeowners, this is a real quality-of-life upgrade.

Installation is a bit more hands-on than with a pre-spaced mat because you are laying the cable yourself. The kit includes cable guides that attach to the subfloor, and you weave the cable through them at 3-inch intervals. This takes more time than rolling out a mat, but it gives you precise control over the heating pattern. I found the process took about 45 minutes longer than a comparable mat installation.

The thermostat has built-in GFCI protection, and the kit includes a floor sensor and an installation monitor. With 426 reviews and a 4.5-star average, this kit has a proven track record. Many reviewers specifically mention helpful YouTube videos from Warming Systems that walk you through the installation step by step. The 25-year warranty and USA manufacturing add to the confidence factor.

Who should buy this

If you want smart home integration with WiFi control and voice commands, this is the best kit in our roundup. The loose cable format also makes it ideal for bathrooms with irregular shapes where a rectangular mat would waste coverage or not fit properly.

What to know before installing

Measure your bathroom floor area carefully before purchasing. With a loose cable system, running out of cable before covering the full area is a real risk if you underestimate. Buy a slightly larger kit than you think you need. The cable guides are essential for maintaining consistent 3-inch spacing throughout the installation.

11. ThermoSoft ThermoTile 7.5 sqft – Best Zero-EMF Technology

ThermoSoft takes a different approach to floor heating with its FiberThermics technology. Instead of standard resistance wire, this mat uses self-limiting fiber thermic heating wires that automatically reduce their heat output as temperature increases. This built-in overheat protection is an extra safety layer that most other mats do not have. If you are concerned about safety in a wet bathroom environment, the ThermoTile’s self-regulating design adds peace of mind.

The mat also delivers zero electromagnetic field output, which puts it alongside HeatTech in the zero-EMF category. The four layers of insulation include an outer nylon layer that resists alkaline, acid, and mechanical damage. This is one of the most durably constructed cables we reviewed.

At 7.5 sqft, this mat covers a small area. It works well in front of a shower or as a supplemental heat source in a larger bathroom. The 10-foot lead wire gives you decent reach to the thermostat location. The mat is made in the USA and carries a UL listing.

The main drawback is installation difficulty. Multiple reviewers rate the installation experience as difficult, specifically noting that the mat can be hard to get flat because the coils retain their curved shape from being rolled in the box. Allowing the mat to flatten out for a few hours before installation and using plenty of adhesive or tape helps with this issue.

Who should buy this

If safety is your top priority and you want a self-regulating heating system with zero EMF and multiple insulation layers, the ThermoSoft ThermoTile is the best choice. It is well-suited for small bathrooms or targeted heating zones where safety matters most.

What to know before installing

Unroll the mat and let it sit flat for at least a few hours before installation so the coils can relax. The mat measures 60 x 15 inches. Use additional double-sided tape or adhesive spray to help it lay flat on the subfloor. This mat does not include a thermostat, so plan to purchase one separately.

12. WarmlyYours TempZone Easy Mat 6 sqft – Best for Compact Spaces

The WarmlyYours TempZone Easy Mat is the smallest mat in our roundup at just 3 by 2 feet, covering 6 sqft. While that may sound tiny, it is actually the perfect size for heating the exact spot where you step out of the shower. If you do not want to heat your entire bathroom floor and just want warm tiles where your bare feet land, this targeted approach is cost-effective and practical.

WarmlyYours is a well-established brand in the radiant heating space, and their customer support is consistently praised in reviews. They offer a unique service where you can send them your bathroom floor plan and they will provide a free custom layout diagram showing exactly how to place the mat. This kind of personalized support is rare at this price point.

The mat itself is designed for no-cut installation. It lays flat and embeds directly in thinset mortar or self-leveling cement without any cutting or modification. The cable is 1/8 inch thick, and the mat produces 90 watts at 12W per sqft. It is UL listed for wet locations, which is essential for bathroom and shower floor applications.

The 25-year manufacturer warranty plus lifetime technical support is a strong combination. The 15-foot cold lead gives you plenty of wire to reach the thermostat. Note that this mat does not include a thermostat, so you will need to add one to your shopping list. Some users reported rare quality issues, but WarmlyYours customer service was responsive in resolving them.

Who should buy this

This mat is ideal if you want targeted floor heating in a specific area, like right outside the shower or in front of the vanity. It is also a good choice if you want to try heated floors as a small test project before committing to a full bathroom installation.

What to know before installing

Measure the exact area you want to heat before ordering. The 3 x 2 foot mat covers a very specific area, so precision matters. Take advantage of WarmlyYours’ free layout service by sending them your floor plan. Since no thermostat is included, budget for one and ensure it is compatible with 120V systems and rated for wet locations.

How to Choose the Right Radiant Floor Heating Mat for Your Bathroom?

Picking the right bathroom floor heating mat comes down to five key factors: size, watt density, thermostat features, EMF levels, and installation method. I have installed several of these systems myself, and the biggest mistake I see people make is buying the wrong size mat for their bathroom. Here is how to get it right.

Measure Your Bathroom Correctly

Start by measuring the open floor area of your bathroom. Subtract the space taken up by the vanity, toilet, bathtub, and any built-in fixtures. You only need to heat the areas where you walk barefoot. For a typical 5×8 foot bathroom, the open floor area is usually around 20 to 25 sqft after subtracting fixtures. A 15 to 20 sqft mat is usually the right fit. For a master bathroom measuring 8×10 feet, plan for 40 to 60 sqft of heated area.

Always buy a mat that is slightly smaller than your measured area. It is better to have a small unheated border than to have too much mat and need to fold or overlap it, which creates dangerous hot spots. Keep the mat at least 4 inches away from toilet drains, vanity bases, and walls.

Watt Density and Heat Output

Most bathroom heating mats produce 12 watts per sqft, which is the standard for residential floor warming. This output level keeps floors comfortable to walk on without excessive energy consumption. All 12 mats in our roundup deliver 12W per sqft. If you live in a particularly cold climate or have poor insulation in your bathroom, look for systems that can be paired with insulated subfloor panels to direct more heat upward.

Thermostat Features Matter

The thermostat is the component you interact with every day, so it is worth paying attention to what is included. Basic programmable thermostats let you set a daily schedule. Mid-range models add touchscreen interfaces and dual-sensing capability. Premium thermostats include WiFi connectivity, smartphone control, and voice assistant compatibility. If your kit does not include a thermostat, budget an extra $40 to $100 for a quality unit with GFCI protection.

EMF Safety Considerations

Electromagnetic field (EMF) exposure is a concern for some homeowners, especially in bathrooms where you spend time barefoot and in close proximity to the floor. Most modern heating mats have low EMF levels, but a few brands go further. HeatTech and ThermoSoft both advertise zero EMF output, while LuxHeat uses dual-wire technology with an aluminum shield to reduce EMF to ultra-low levels. If EMF is a priority for you, look for these specific technologies.

Installation Type: Mat vs Cable

Pre-spaced mats are faster and easier to install because the cable spacing is already set. You roll out the mat, stick it down, and tile over it. Loose cable kits like the Warming Systems 15 sqft cable give you more layout flexibility but take longer to install because you have to space the cable yourself using guides. For most DIY bathroom projects, a pre-spaced mat is the simpler choice.

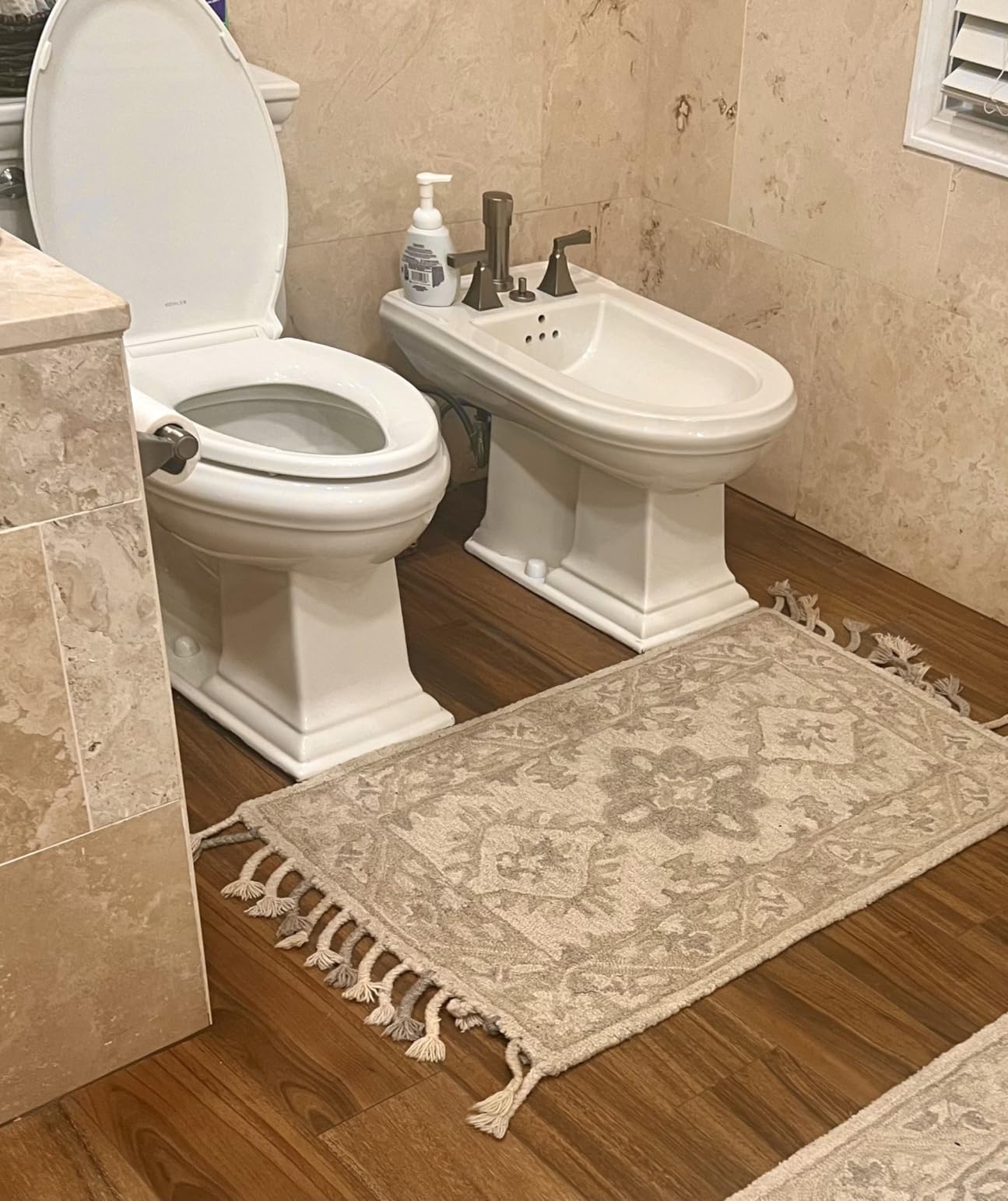

Can You Put Rugs on Radiant Heated Floors?

This is a common question from homeowners. You can put rugs on radiant heated floors, but you need to be selective. Thin, breathable rugs like cotton or bamboo allow heat to pass through effectively. Thick, rubber-backed rugs or dense wool rugs act as insulators and trap heat beneath them, which can cause the floor to overheat in that area and potentially damage the heating system or the floor covering. If you want a rug on your heated bathroom floor, choose one with an open weave and a thin, non-rubber backing.

DIY vs Professional Installation

Most electric floor heating mats are marketed as DIY-friendly, and experienced homeowners can handle the physical installation of the mat itself. The tricky part is the electrical work. Connecting the mat to a thermostat, running wiring to the electrical panel, and ensuring GFCI protection usually requires a licensed electrician. Forum users on r/HomeImprovement report typical costs of $150 to $300 for an electrician to complete the wiring, while a full professional installation including the mat runs $500 to $1,200 depending on bathroom size and your location.

Frequently Asked Questions About Radiant Floor Heating Mats

Final Thoughts on the Best Radiant Floor Heating Mats for Bathrooms

After reviewing all 12 products, our top recommendation for most homeowners is the LuxHeat 50sqft Floor Heating Mat Kit for its 4.8-star rating, touchscreen thermostat, and ultra-low EMF design. For the best balance of value and quality, the Warming Systems 30 Sqft mat with 908 reviews and a USA-made construction is hard to beat. And if you are on a budget, the MAXKOSKO 15 sqft mat gives you functional heated floors at the lowest cost in our roundup.

The best radiant floor heating mats for bathrooms share a few common traits: they are UL listed for wet locations, include GFCI protection, deliver 12 watts per sqft, and come with warranties of 25 years or more. Whichever mat you choose, take the time to measure your bathroom accurately, plan your layout on paper first, and use a multimeter throughout installation. A heated bathroom floor is a small luxury that makes a big difference every single morning, and once you have one, you will wonder how you lived without it.
