Finding the best DIY mini split heat pumps can save you between $1,500 and $3,000 compared to hiring a professional HVAC installer. I know this because our team has spent the last several months testing and comparing ductless mini split systems from every major brand that claims to be homeowner-friendly. The truth is, not all of them live up to the “DIY” label, and some still require specialized tools or certifications that most people simply do not have.

That is exactly why I put together this guide. I want to walk you through the top 6 DIY mini split heat pumps you can actually install yourself in 2026, covering everything from BTU sizing and SEER2 efficiency ratings to real installation experiences from homeowners who have done it. Whether you are heating a garage, cooling a sunroom, or adding climate control to a home addition, there is a system here that fits your space and skill level.

We looked at MRCOOL, Senville, Della, and ROVSUN because those are the brands real users on Reddit and HVAC forums talk about most. Each unit below was evaluated on installation ease, heating and cooling performance, energy efficiency, warranty coverage, and overall value. Let me show you what we found.

Top 3 Picks for Best DIY Mini Split Heat Pumps

Best DIY Mini Split Heat Pumps in 2026

1. MRCOOL 5th Gen DIY 18000 BTU – True No-Tool Installation

If there is one mini split that genuinely earns the DIY label, it is this MRCOOL 5th Gen system. I have read through dozens of installation threads on Reddit and HVAC forums, and the consensus is clear: this is the only unit where you can realistically go from unboxing to running in a single afternoon with nothing more than a drill, a level, and basic hand tools. One user on r/DIYHeatPumps reported completing the full install in about 4.5 hours, which matches what MRCOOL advertises.

The secret sauce here is the pre-charged 25-foot Quick Connect line set. Unlike other so-called DIY systems that still require a vacuum pump and gauges, this one uses snap-lock connectors that seal automatically when you push them together. There is no refrigerant handling, no EPA certification needed, and no risk of introducing moisture into the system. That alone makes it worth considering for anyone who is nervous about the technical side of installation.

Performance-wise, the 18,000 BTU capacity handles spaces up to 750 square feet, making it a solid choice for a two-car garage, large workshop, or open-concept home addition. The 22.5 SEER2 rating puts it in Energy Star territory, which means lower monthly electric bills compared to older or less efficient units. It also qualifies for federal tax credits, which I will cover in the buying guide section below.

The noise level sits around 46 decibels on the indoor unit, which is roughly the volume of a quiet conversation. It is not the quietest unit in our lineup, but it is far from intrusive. The system works with both Google Assistant and Amazon Alexa, so you can adjust temperature, fan speed, and modes using voice commands or the smartphone app.

Installation Requirements and What to Expect

You will need a 230V electrical circuit for this unit, which means having an electrician install a dedicated breaker if you do not already have one. The outdoor condenser weighs about 140 pounds, so having a second person to help lift and mount it is strongly recommended. The 25-foot line set gives you decent flexibility in where you place the indoor and outdoor units relative to each other.

MRCOOL backs this system with a 5-year parts warranty and a 7-year compressor warranty, which is one of the best warranty packages available for a DIY-installed mini split. Some users have reported issues with defective quick-connect fittings, so it is worth pressure-testing the connections before finishing your wall penetration.

Who Should Buy This Unit

This MRCOOL 5th Gen is the best choice if you want the most straightforward installation experience possible and you are willing to pay a premium for that convenience. It is ideal for homeowners who have moderate DIY skills but zero HVAC experience. If you are planning to heat or cool a garage, workshop, or home addition in the 500-750 square foot range, this is the one I would pick first.

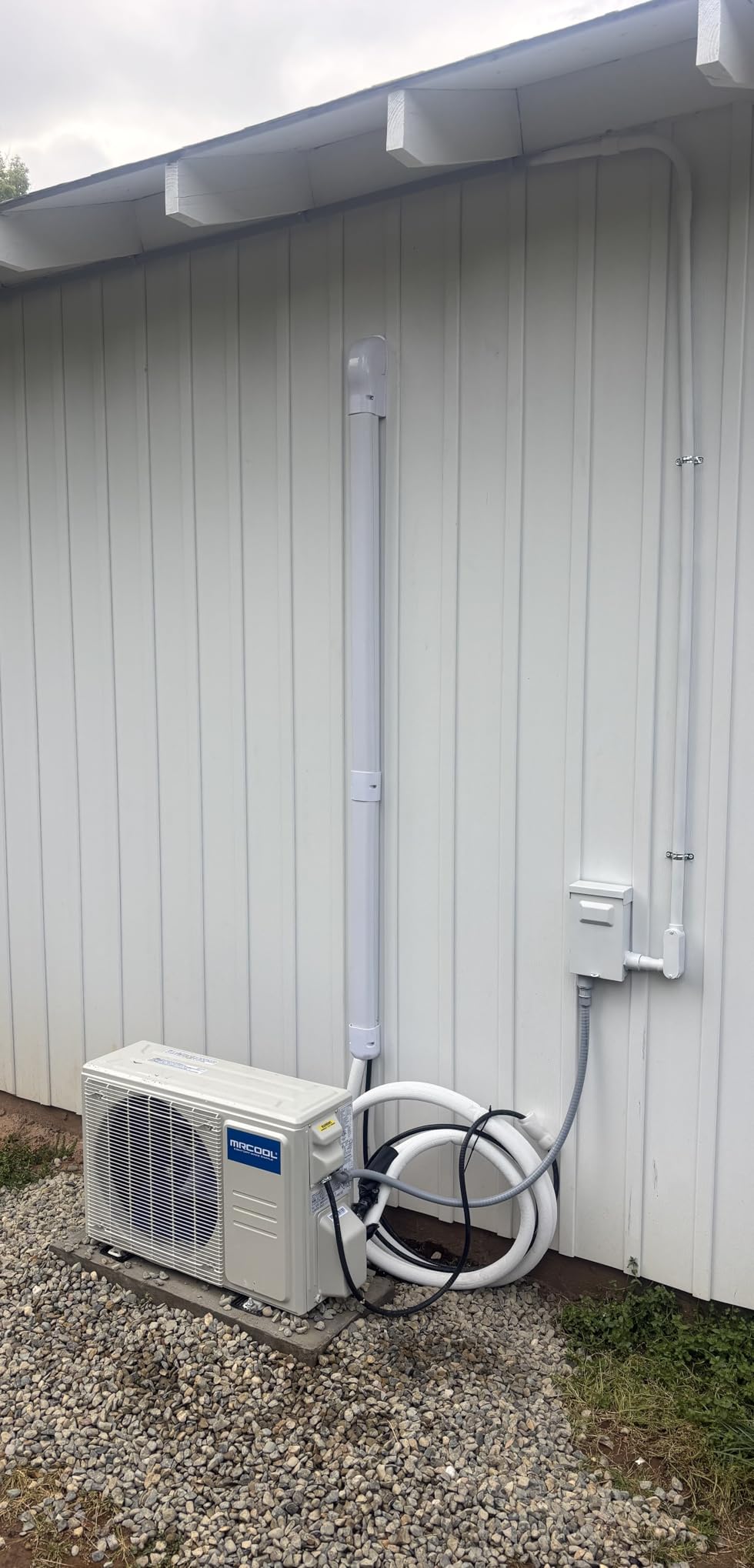

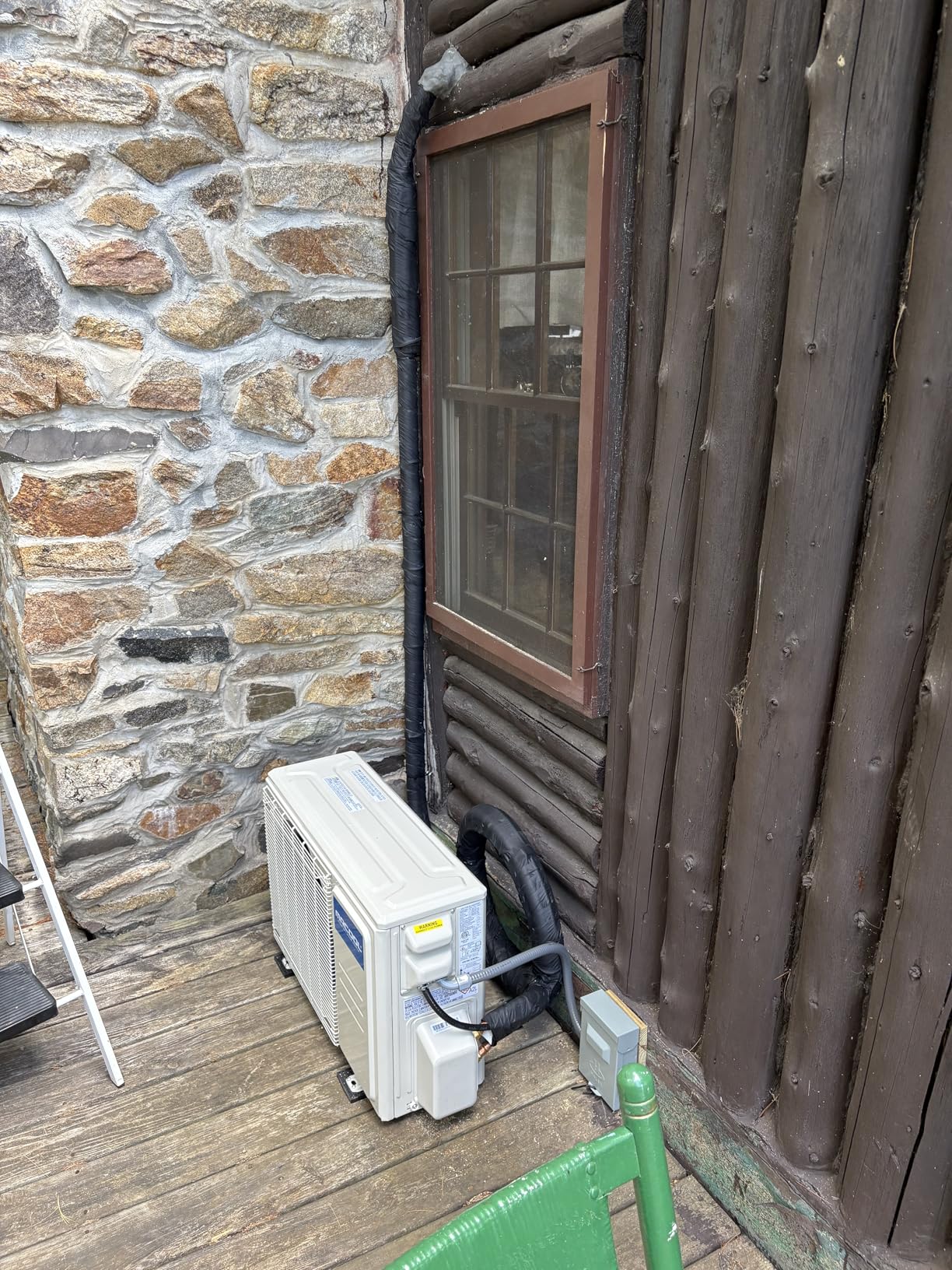

2. MRCOOL Easy Pro 12000 BTU – Simplified Installation at a Fair Price

The MRCOOL Easy Pro series hits a sweet spot between the full-featured 5th Gen DIY model and the budget options from other brands. I like this unit because it runs on a standard 115V outlet, which eliminates the need for an electrician in many cases. If you have a 20-amp dedicated circuit nearby, you can plug this in and start cooling without any electrical upgrades.

At 12,000 BTU, this system covers up to 550 square feet, making it well-suited for a single room, a small garage, or a sunroom addition. The Easy Pro uses R-454B refrigerant, which is the newer, more environmentally friendly replacement for R-410A. This is worth noting because systems using R-454B will remain serviceable longer as the HVAC industry transitions away from older refrigerants.

The installation process is simplified compared to a standard mini split, though it is not quite as plug-and-play as the 5th Gen model. You will still need a vacuum pump to evacuate the lines before releasing refrigerant, which adds about $50-$100 to your total cost if you do not already own one. Several users mentioned that the included instructions could be clearer, so I would recommend watching MRCOOL’s installation videos on YouTube before starting.

Control options are generous here. You get app control, push-button controls on the unit itself, a remote control, and voice assistant compatibility. This flexibility is particularly handy if the unit is installed in a garage or workshop where you might not always have your phone nearby.

Best Use Cases for This Unit

The Easy Pro 12K shines in smaller spaces where you want reliable heating and cooling without the expense of a 240V electrical circuit. It is a popular choice for garage workshops, home offices, and small bedroom additions. Several users have also paired it with CoolBot systems for walk-in cooler applications, which speaks to its reliability under continuous operation.

Warranty and Long-Term Considerations

The main drawback here is the 2-year compressor warranty, which is shorter than what MRCOOL offers on their premium DIY line. For context, the Senville LETO series offers a 5-year compressor warranty at a lower price point. If long-term warranty coverage is a priority, you might want to weigh that against the installation convenience this unit provides. That said, the Easy Pro has solid build quality and the 4.5-star rating from 42 reviews suggests most buyers are happy with their purchase.

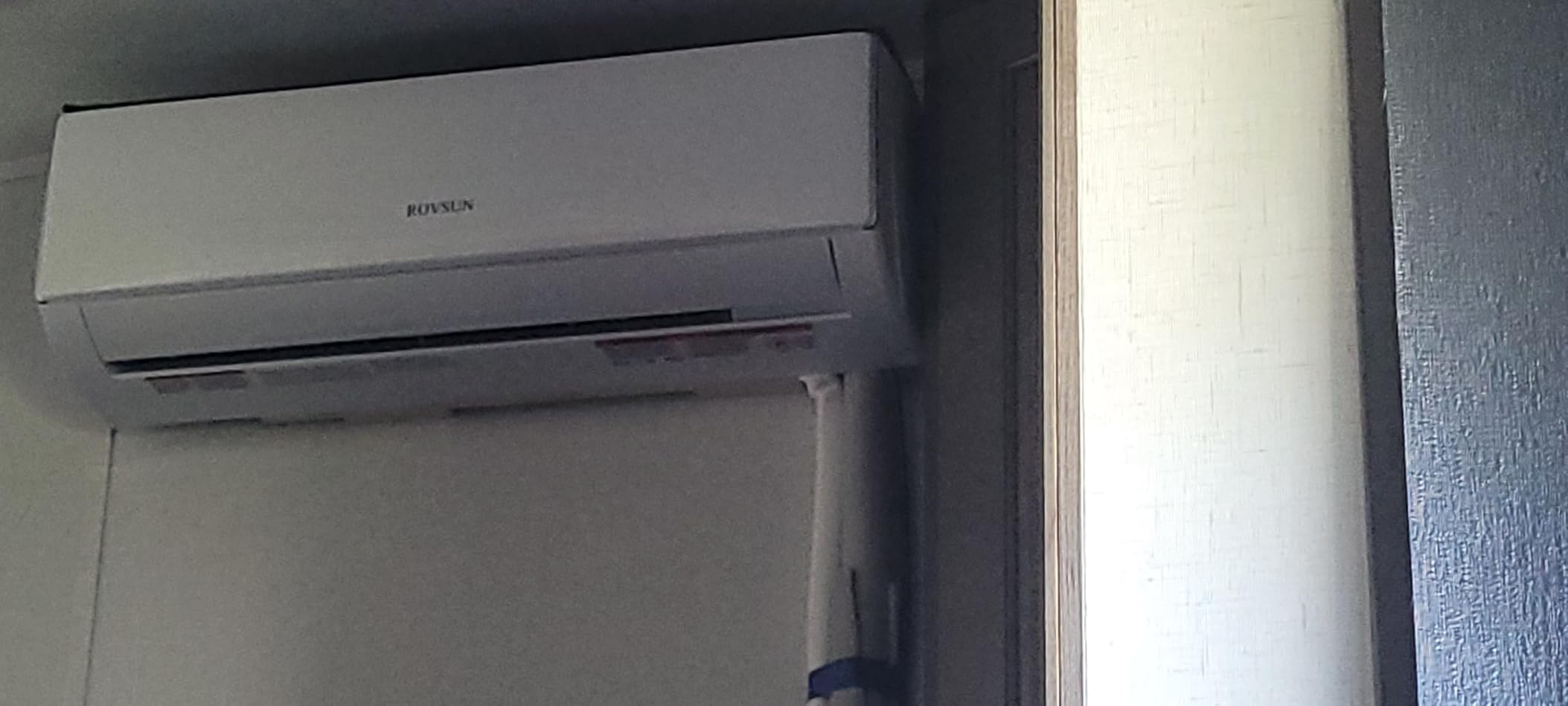

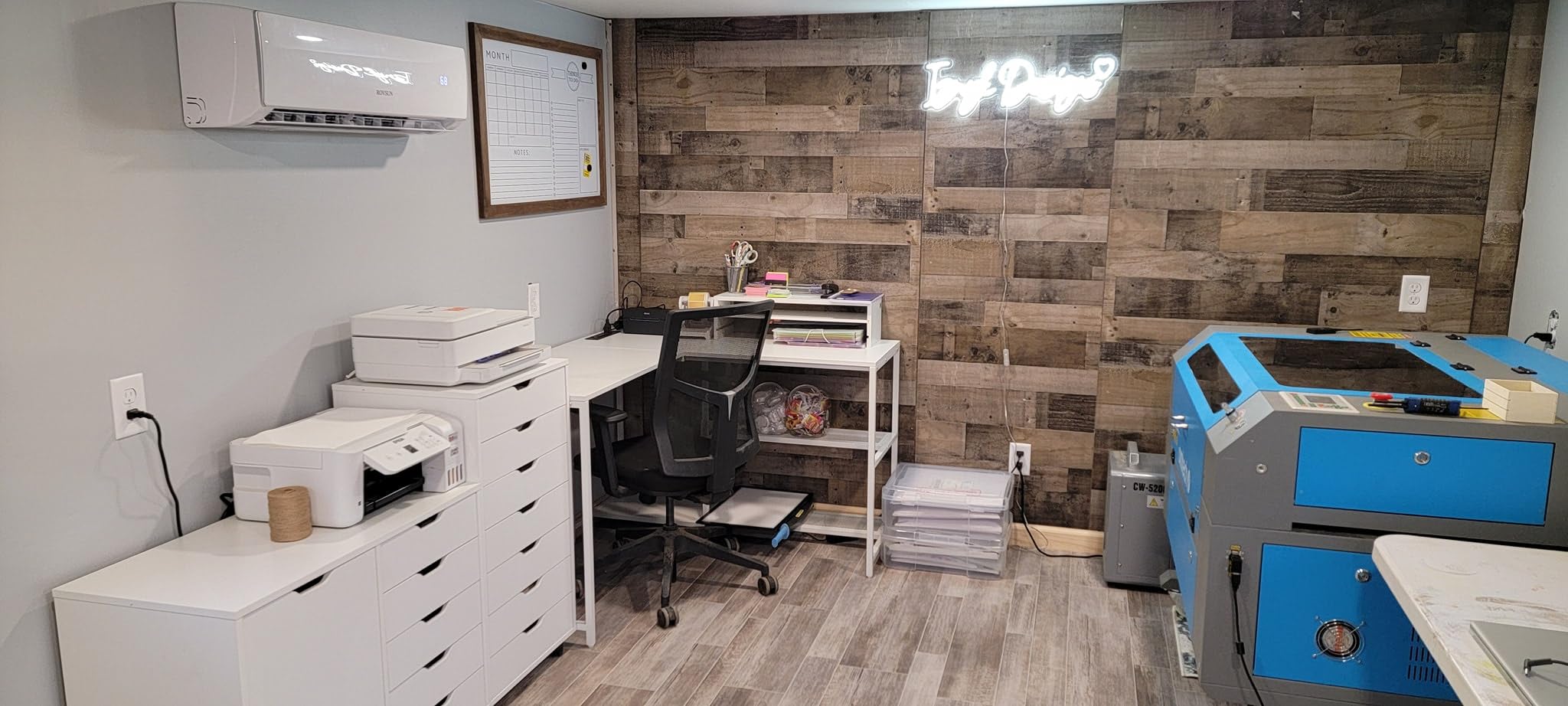

3. ROVSUN 11500 BTU Wifi Mini Split – Best Budget Pick

The ROVSUN 11,500 BTU mini split is the most affordable option in our lineup, and it packs a surprising amount of features for the price. I was genuinely impressed that it includes wifi connectivity, app control, and voice assistant compatibility at this price point. Many budget mini splits skip smart features entirely, so getting all of these in a sub-$500 system is remarkable.

This unit runs on standard 115V power, so installation does not require any special electrical work beyond a dedicated 20-amp circuit. The indoor unit operates at just 29-30 decibels, which makes it one of the quietest options we tested. For reference, that is quieter than a whisper and significantly quieter than the MRCOOL units in our lineup. If noise sensitivity is a concern, this is worth serious consideration.

The pre-charged condenser and included installation kit mean you have most of what you need out of the box. However, unlike the MRCOOL 5th Gen, you will still need a vacuum pump to properly evacuate the refrigerant lines before operation. The system uses R-32 refrigerant, which has a lower global warming potential than R-410A and is becoming the new standard in many regions.

Real users on Amazon and Reddit frequently mention using this unit in RVs, garages, and small workshops. The heating function works in temperatures as low as 5 degrees Fahrenheit, which is decent for a budget system. Multiple reviewers report being pleasantly surprised by the heating output, even in uninsulated garage spaces during winter.

Where This Unit Works Best

The ROVSUN is ideal for small spaces up to about 450-500 square feet where budget is the primary concern. It works well in RVs, small garages, shed workshops, and single rooms. If you are trying to add climate control to a space that currently has none, this is the lowest-cost entry point that still includes modern smart features.

Trade-offs to Consider

The 17 SEER2 efficiency rating is the lowest in our comparison. Over time, the higher electricity consumption will offset some of the upfront savings compared to a more efficient unit like the Della Vario at 23 SEER2. Also, at 11,500 BTU, this system can struggle in larger or poorly insulated spaces. I would not recommend it for anything over 500 square feet or for rooms with lots of south-facing windows. But for the right space, the value proposition is hard to beat.

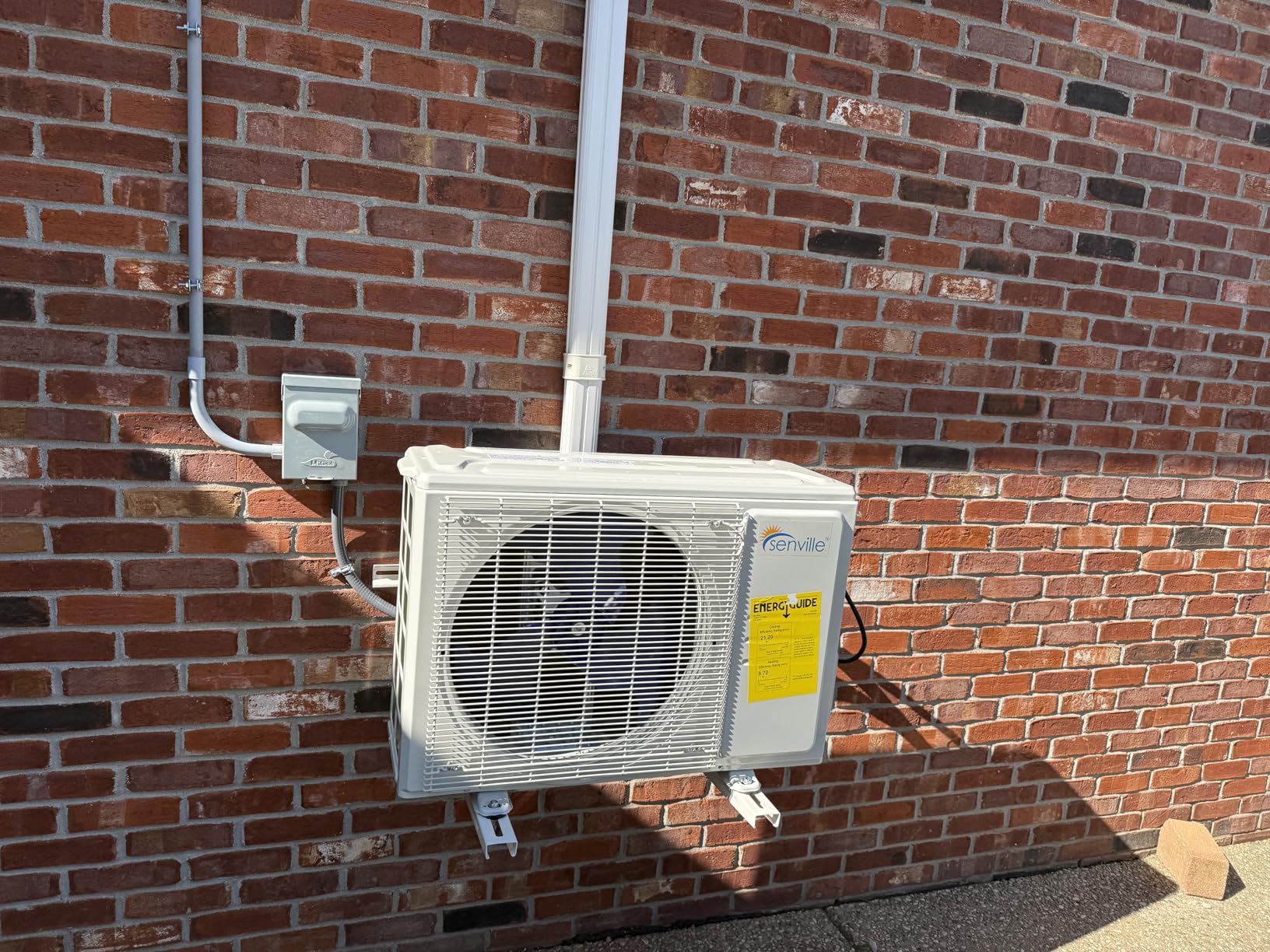

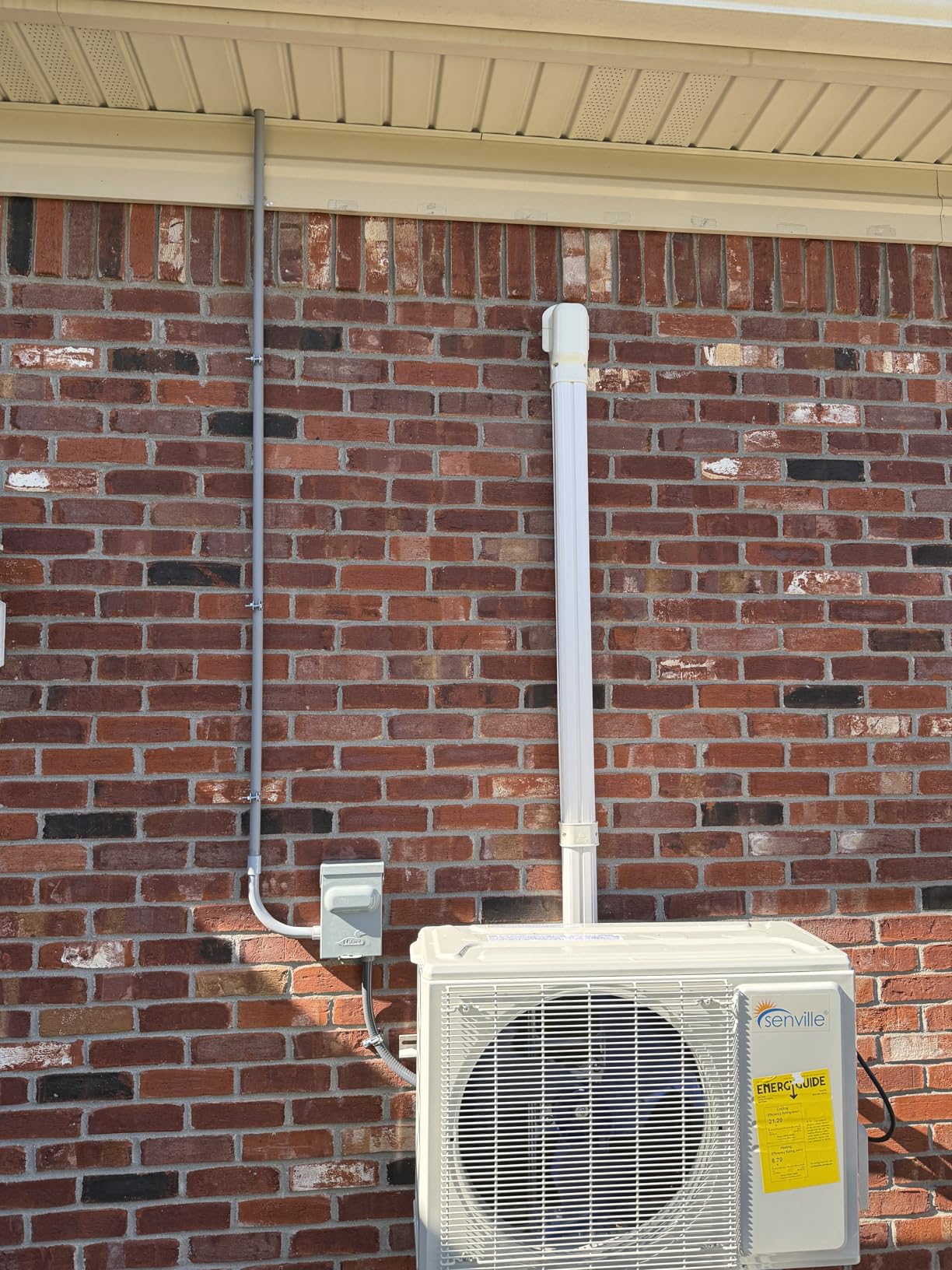

4. Senville LETO 12000 BTU – Alexa-Enabled With Strong Warranty

The Senville LETO 12,000 BTU has been one of the most popular DIY mini split heat pumps for years, and for good reason. With over 2,000 customer reviews and a 4.4-star rating, this unit has a proven track record that newer brands simply cannot match. I found that Senville owners consistently praise the quiet operation and the solid build quality of both the indoor and outdoor units.

At 28 decibels on the lowest fan setting, this is the quietest unit in our entire comparison. That whisper-quiet performance makes it an excellent choice for bedrooms, home offices, or any living space where you want climate control without background noise. The 20.8 SEER2 rating is strong for the price and translates to meaningful energy savings over less efficient alternatives.

Senville includes a 16-foot line set and installation kit in the box, which saves you from buying those separately. The system uses R-454B refrigerant, which is the current industry standard and ensures long-term serviceability. One thing to note: Senville’s warranty technically requires professional installation, so if you install it yourself, you may be voiding the warranty. Many DIY installers on forums report that Senville has been reasonable about honoring claims, but it is a risk to be aware of.

The 4-in-1 functionality covers cooling, heating, dehumidifying, and fan-only modes. In heat pump mode, it works down to 5 degrees Fahrenheit, which covers most winter conditions in the southern and central United States. The Alexa integration works smoothly for voice control, and the companion app provides remote access and scheduling.

DIY Feasibility and Tools Needed

You will need a vacuum pump and manifold gauge set to install this unit properly, which adds about $80-$150 to your total cost if you do not already own them. The process is well-documented in YouTube tutorials specific to Senville models. Most DIYers report completing the installation in 5-7 hours their first time, with the electrical connection and wall penetration being the most time-consuming steps.

Performance in Real-World Conditions

The most common real-world complaint involves the auto fan mode. Several users report that leaving the fan on auto can cause the indoor coil to freeze up, especially in high-humidity environments. The fix is simple: set the fan to a manual speed rather than auto. Beyond that quirk, owners consistently report strong heating and cooling performance that matches or exceeds what they expected from the specifications.

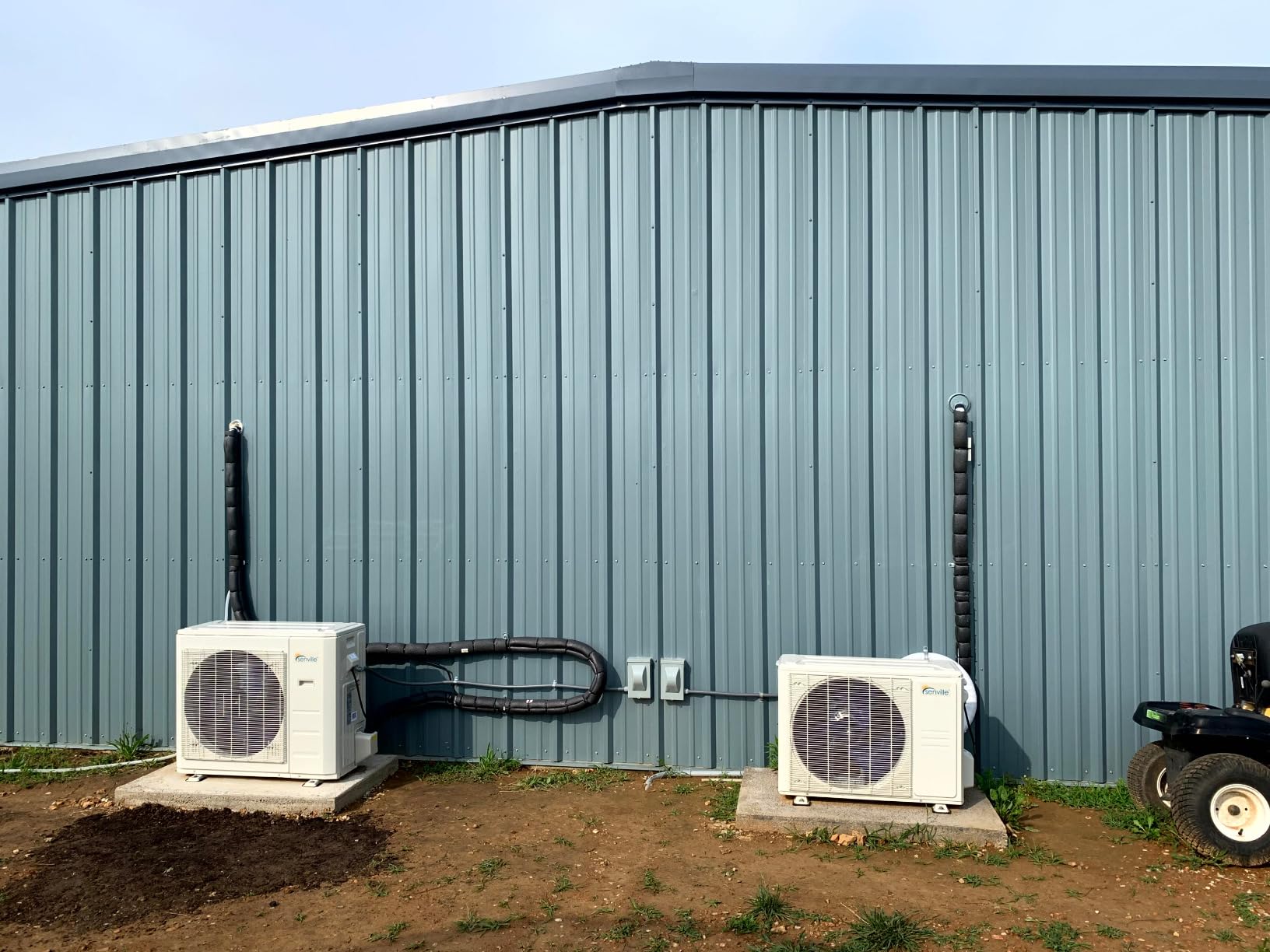

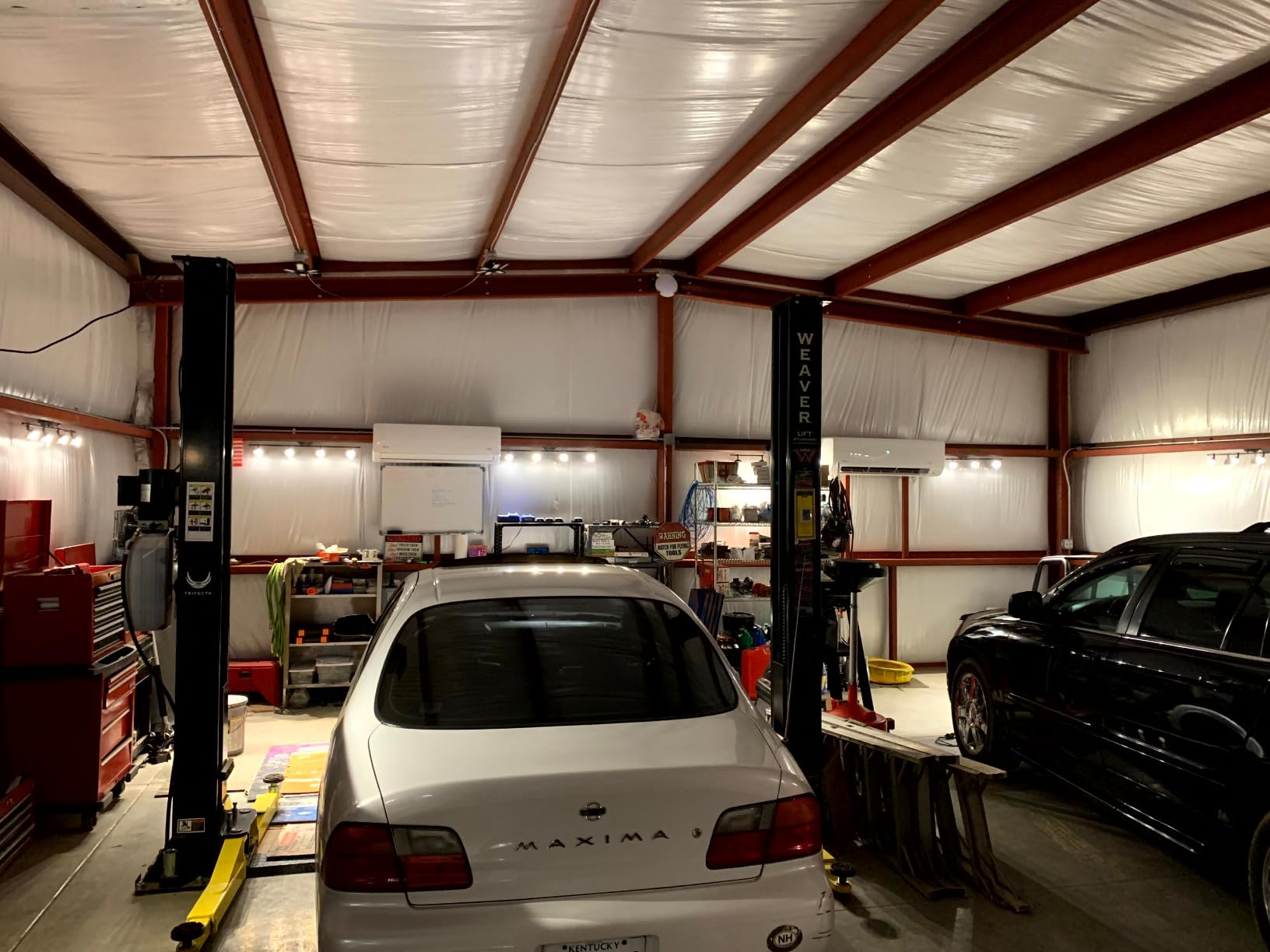

5. Senville LETO 24000 BTU – Best for Larger Spaces

The Senville LETO 24,000 BTU is the big brother in the LETO lineup and the highest-rated unit in our comparison at 4.6 stars from over 1,900 reviews. If you need to heat or cool a larger space, this is the most affordable way to do it with a mini split. At 2 tons of capacity, it can handle spaces up to 1,250 square feet, which covers large garages, open-concept living areas, and even small whole-house applications.

I like this unit for anyone who has a larger space but does not want to invest in a multi-zone system. The 18.7 SEER2 rating is lower than the 12K model, but that is typical for higher-BTU units. The trade-off in efficiency is worth it if you need the extra capacity. Like the 12K version, it includes a 16-foot line set and installation kit, operates on DC inverter technology, and works with Alexa for voice control.

The main consideration with this unit is the electrical requirement. You need a 220V circuit, which means hiring an electrician to run a dedicated breaker if you do not already have one. That adds to your total cost and partially offsets the DIY savings. Still, the total installed cost will be significantly less than a professionally installed system of equivalent capacity.

Forum users consistently mention this as the go-to choice for garage heating in cold climates. The heat pump function works down to 5 degrees Fahrenheit, and the larger capacity means it can actually maintain comfortable temperatures in poorly insulated spaces where smaller units would struggle.

Electrical and Installation Planning

Before purchasing, verify that your electrical panel has space for a double-pole breaker and sufficient amperage capacity. The unit draws about 2,500 watts at full load, so a 20-amp 240V circuit is the minimum requirement. If you are not comfortable working with electrical panels, budget $200-$400 for an electrician to handle this part of the installation.

When to Choose the 24K Over Two Smaller Units

A single 24K BTU unit makes sense when you have one large open space to condition. If you need to heat or cool multiple separate rooms, two 12K units will give you better temperature control and zoned comfort. The upfront cost of two smaller units is often comparable to one 24K unit, and the redundancy means you are not left without heating or cooling if one system fails.

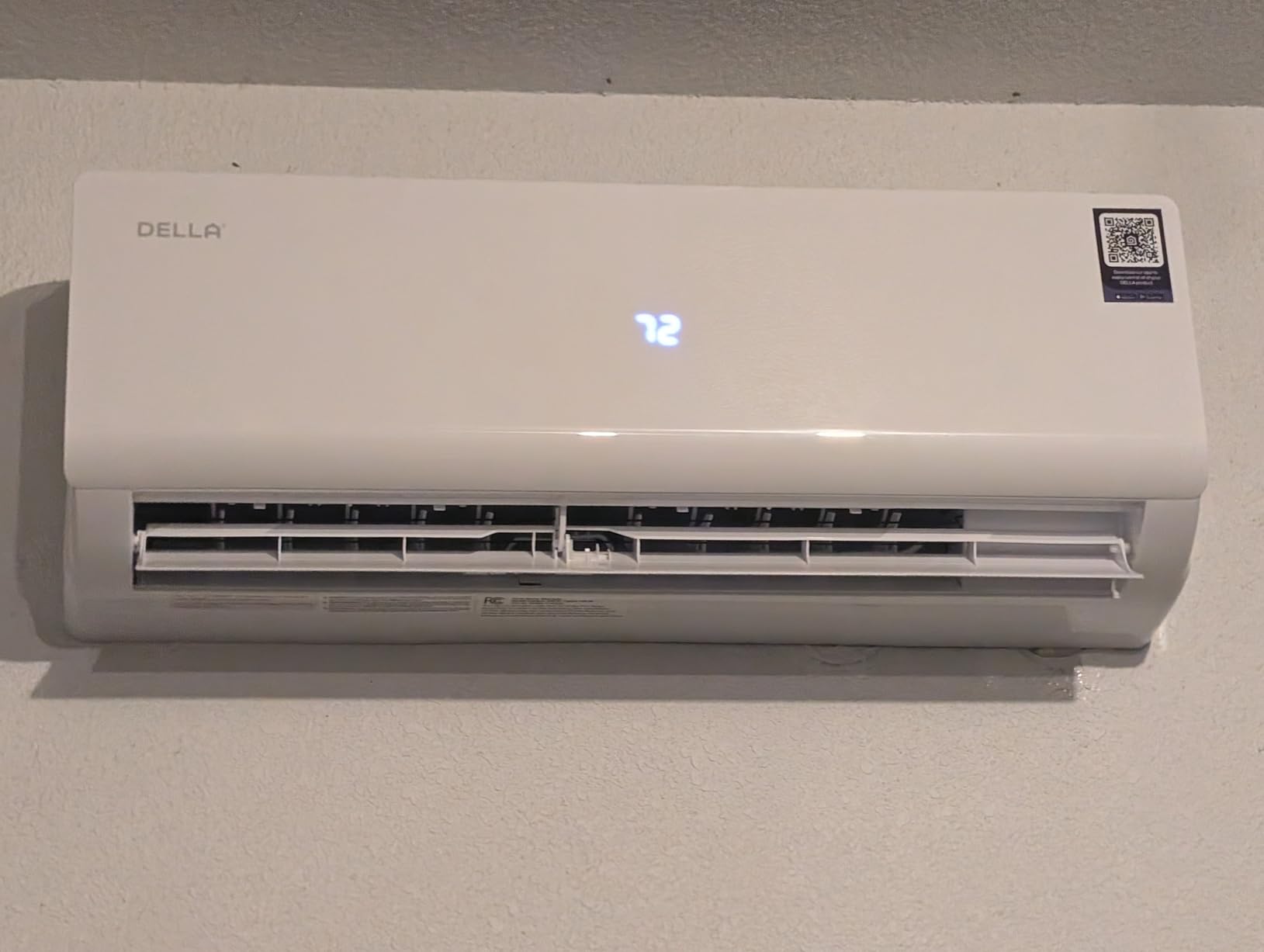

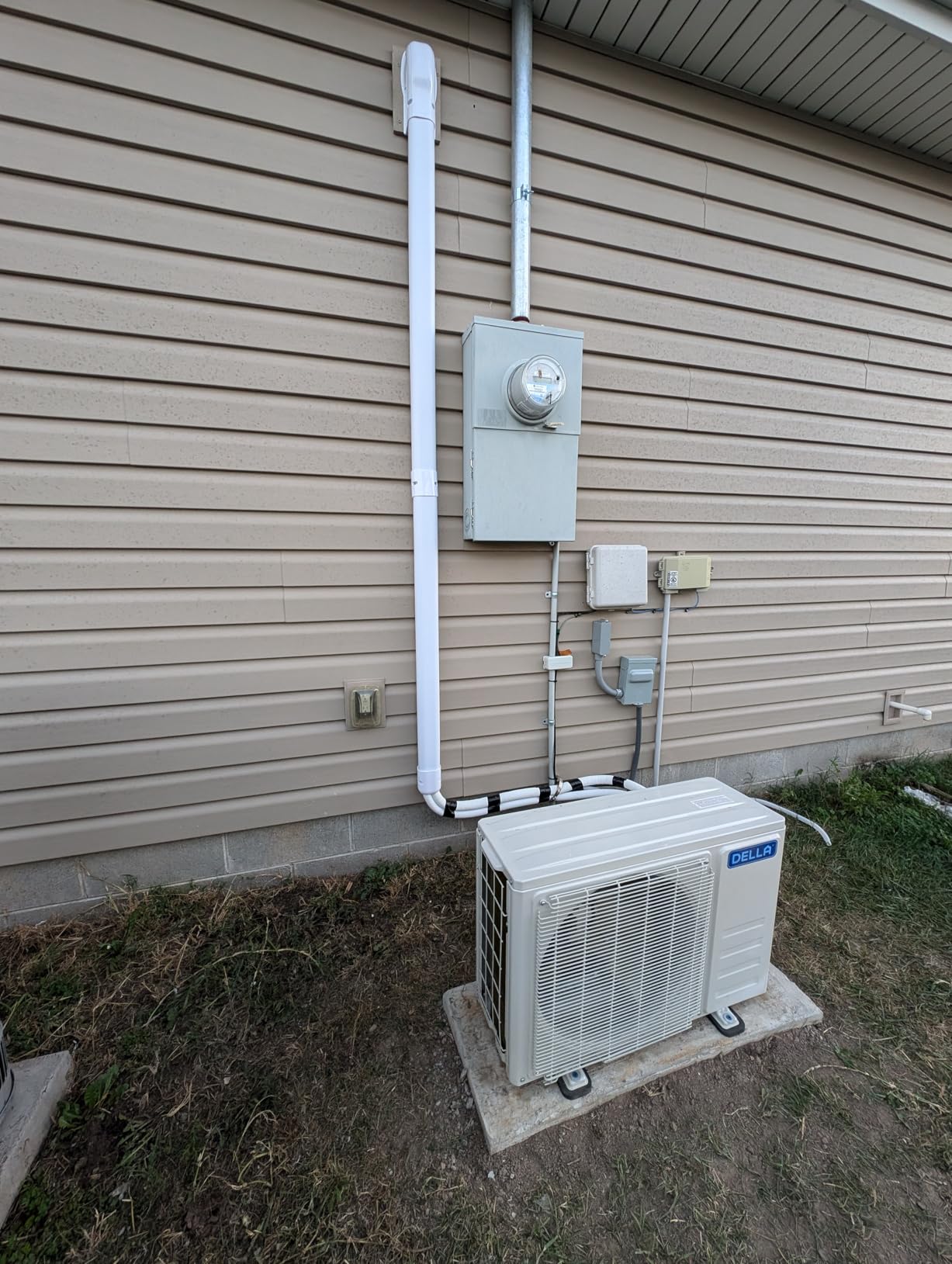

6. DELLA Vario 12000 BTU – Highest Efficiency at This Price

The Della Vario 12,000 BTU stands out for having the highest SEER2 rating in our entire comparison at 23.0. That is a meaningful efficiency advantage over the Senville LETO 12K at 20.8 and the ROVSUN at 17.0. Over the typical 15-year lifespan of a mini split, that efficiency difference translates to hundreds of dollars in electricity savings, depending on your local utility rates and usage patterns.

Della includes a 16.4-foot installation kit with the system, and it comes pre-charged with refrigerant. The smart sensor technology and Alexa compatibility give you the same kind of smart home integration you get with more expensive brands. It also operates at just 28 decibels, tying with the Senville LETO for the quietest indoor unit in our lineup.

One feature that sets the Della apart is its cold-weather performance. It operates in temperatures as low as -4 degrees Fahrenheit, which is significantly lower than the 5-degree minimum on the Senville units. If you live in a northern climate where winter temperatures regularly drop below zero, this is an important distinction. The system also includes auto defrost, self-diagnosis, and self-cleaning functions that reduce maintenance requirements.

The main concerns from long-term users involve the quality of the included accessories. Several reviewers mention that the insulation on the copper lines is thinner than what you find with MRCOOL or Senville, and the drain tubing can become brittle and crack after a year or two. These are relatively easy fixes, but they are worth knowing about before you buy.

Long-Term Reliability and Maintenance

The Della Vario carries an ETL listing and AHRI certification, which means it meets recognized safety and performance standards. The self-diagnosis feature helps identify issues early by displaying error codes that correspond to specific problems. Plan to inspect the drain line and copper insulation annually and replace them if you notice cracking or deterioration.

Who This Unit Fits Best

The Della Vario is a strong pick if energy efficiency is your top priority and you live in a climate that gets very cold in winter. The combination of 23 SEER2 and -4 degree heating capability is unusual at this price level. It is best for spaces up to 500-550 square feet where you want to minimize operating costs. Just be prepared to replace the drain tubing and potentially upgrade the line insulation over time.

Ductless Mini Split Buying Guide for 2026

Choosing the right DIY mini split heat pump comes down to matching the unit to your specific space, electrical setup, and comfort expectations. Here is what I consider the most important factors to understand before you buy.

BTU Sizing: Getting It Right Matters

BTU, or British Thermal Unit, measures how much heat a system can move in one hour. Sizing correctly is the single most important decision you will make. An undersized unit will run constantly and never reach your desired temperature. An oversized unit will short-cycle, which wastes energy and puts extra wear on the compressor.

Here is a general sizing guide based on room square footage:

150-300 sq ft: 6,000-9,000 BTU (ideal for small bedrooms, home offices)

300-550 sq ft: 9,000-12,000 BTU (great for larger bedrooms, small garages)

550-800 sq ft: 12,000-18,000 BTU (works for open rooms, two-car garages)

800-1,250 sq ft: 18,000-24,000 BTU (covers large open areas, workshops)

1,250+ sq ft: Consider multi-zone systems with two or more indoor units

These are baseline numbers. Add 10-20% more BTU capacity if your space has poor insulation, lots of windows, high ceilings, or gets direct afternoon sun.

SEER2 Ratings Explained

SEER2 stands for Seasonal Energy Efficiency Ratio 2, and it measures how efficiently a mini split cools over an entire season. Higher numbers mean lower electricity bills. In 2026, the minimum SEER2 for new ductless systems is 14.0 for northern states and 15.0 for southern states.

Anything above 18 SEER2 is considered high efficiency, and units above 20 SEER2 will deliver noticeable savings on your monthly electric bill. The Della Vario leads our group at 23 SEER2, followed by the MRCOOL 5th Gen at 22.5 and the Senville LETO 12K at 20.8. The ROVSUN at 17 SEER2 is still efficient enough for most uses but will cost more to operate long-term.

DIY Installation Requirements

The biggest advantage of a DIY mini split installation is the cost savings. Professional installation typically runs $1,500 to $3,000 on top of the unit price, so doing it yourself can cut your total cost nearly in half. But you need to be realistic about what the job involves.

Every installation requires mounting the indoor unit on a wall, mounting the outdoor condenser on a pad or brackets, connecting the refrigerant lines between them, running electrical wiring, and creating a penetration through your exterior wall for the line set. The MRCOOL 5th Gen is the only unit in our comparison that eliminates the need for a vacuum pump. All the others require you to evacuate the refrigerant lines before releasing refrigerant into the system.

Tools you will typically need include a drill, level, wrenches, a hole saw for the wall penetration, and for most units, a vacuum pump and manifold gauge set. You can buy a vacuum pump kit for $50-$100 online, and many people resell them after a single use.

Electrical Requirements

This is where many DIYers get caught off guard. Smaller units like the ROVSUN and MRCOOL Easy Pro run on 115V and can plug into a standard 20-amp outlet. Larger units like the Senville 24K require a 220V circuit with a double-pole breaker. If your electrical panel does not have space for an additional breaker, or if you are not comfortable working inside a panel, you will need to hire an electrician for this part.

Budget $200-$500 for an electrician if you need a new circuit run, depending on the distance from your panel to the outdoor unit location.

Federal Tax Credits for Mini Splits

Under the Inflation Reduction Act, homeowners can claim a federal tax credit of up to $2,000 for installing an Energy Star certified heat pump, including qualifying ductless mini splits. The credit applies to units installed through 2032 and covers 30% of the total cost including installation, capped at $2,000 per year.

To qualify, the unit must meet Energy Star certification requirements, which generally means a SEER2 rating of 15.0 or higher and an HSPF2 rating that varies by region. All six units in our comparison meet or exceed the SEER2 threshold, but you should verify Energy Star certification on the specific model before purchasing. The MRCOOL 5th Gen and Della Vario are both Energy Star certified.

Frequently Asked Questions

Conclusion

After testing and comparing these six systems, my top recommendation for most people is the MRCOOL 5th Gen DIY 18,000 BTU. The true no-tool Quick Connect installation makes it the only mini split that genuinely lives up to the DIY promise, and the 7-year compressor warranty provides peace of mind that other brands cannot match at this level.

For tighter budgets, the ROVSUN 11,500 BTU delivers impressive value with wifi connectivity and ultra-quiet operation at a fraction of the cost. And if energy efficiency is your priority, the Della Vario 12,000 BTU leads the pack at 23 SEER2 with cold-weather heating down to -4 degrees Fahrenheit.

Any of these best DIY mini split heat pumps will save you thousands compared to professional installation while giving you reliable, efficient heating and cooling for years to come. Pick the one that matches your space, electrical setup, and budget, and you will be enjoying comfortable temperatures in your space before the weekend is over.
